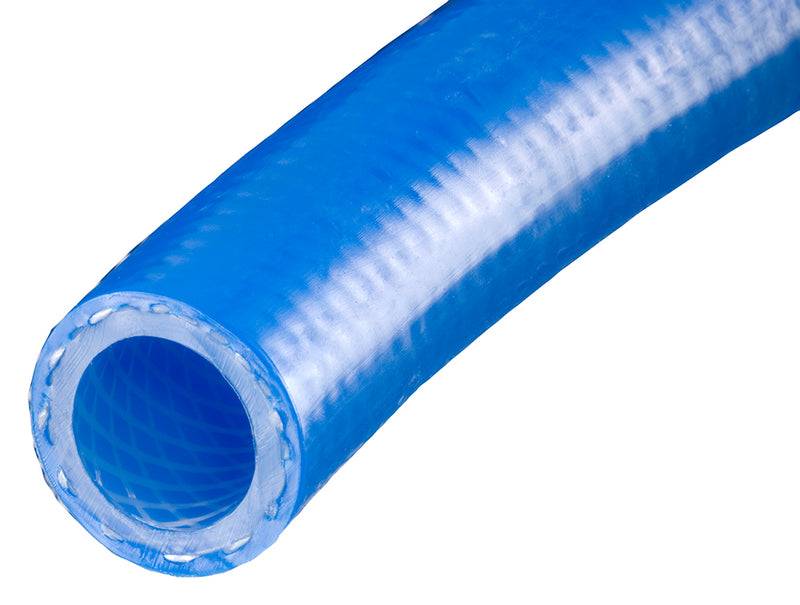

A3236-08X300 Kuriyama Kuri Tec A3236 Series High Purity Non-Toxic LLDPE Water Hose - 1/2" ID - .750" OD - 300ft

A3236-08X300 Kuri-Tec by Kuriyama | A3236 Series | High Purity Non-Toxic LLDPE Water Hose | Blue | 1/2" ID | .750" OD | EVA Copolymer | 300ft Length

Save $38.67

$386.67

$386.67 - $386.67

$386.67

$348.00

$348.00 - $348.00

$348.00

Kuriyama Kuri Tec® Series A3236 High Purity Non-Toxic LLDPE Water Hose A flexible, non-contaminating food grade hose that is ideal for use in food, beverage and water applications.

Package Quantity: 300 FT

Quantity

Specifications for Variant SKU: A3236-08X300 Kuriyama \| 300 \|
Brand:	Kuri Tec
Series:	A3236 Series
Hose Color(s):	Blue
Internal Diameter:	0.50in
Outer Diameter:	0.75in
Tubing Construction:	LLDPE
Cover Construction:	Ethylene-Vinyl Acetate Copolymer
Applicable Specs & Approvals:	Applicable FDA Requirements, Applicable NSF Requirements, RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Transfer of food, beverages and water, Transfer of deionized water, Water sampling, Water bottling equipment, Temporary residential water supply lines Water transfer lines for semiconductor manufacturing, where applicable Environmental clean-up applications involving water and chemicals	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Special co-extruded tube with the inner contact surface meeting applicable FDA(04), NSF(12) and RoHS(15) requirements.
Reinforcement:	High tensile strength yarn	Cover:	Blue EVA Copolymer . . . complies with FDA(04) and RoHS(15) requirements.
Temperature Range:	-10 deg. F (-23 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	FDA(04), NSF(12), RoHS(15)
Extremely light weight. Good resistance to U. V. and weather aging. Exceptionally low hydrocarbon extraction into water, as compared to the EPA MCL's (maximum contaminant levels) for drinking water. Extremely low hydrocarbon absorption from contaminated water samples. Excellent low temperature flexibility. Excellent chemical resistance. Silicone-free. One-piece lengths. Opaque jacket reduces tendency for algae growth in warm, sunny applications.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Coil
A3236-08X300	1/2"	12.7mm	.750"	19.1mm	200 PSI	100 PSI	300 ft.	33 lbs.
A3236-12X300	3/4"	19.1mm	1.125"	28.6mm	200 PSI	100 PSI	300ft	68 lbs.
A3236-16X200	1"	25.4mm	1.375"	34.9mm	150 PSI	75 PSI	200 ft	59 lbs.

Note: *For applications requiring minimal stretch, this hose is also available with longitudinal cords by ordering Series A3246, check with factory for minimum quantity requirements. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
