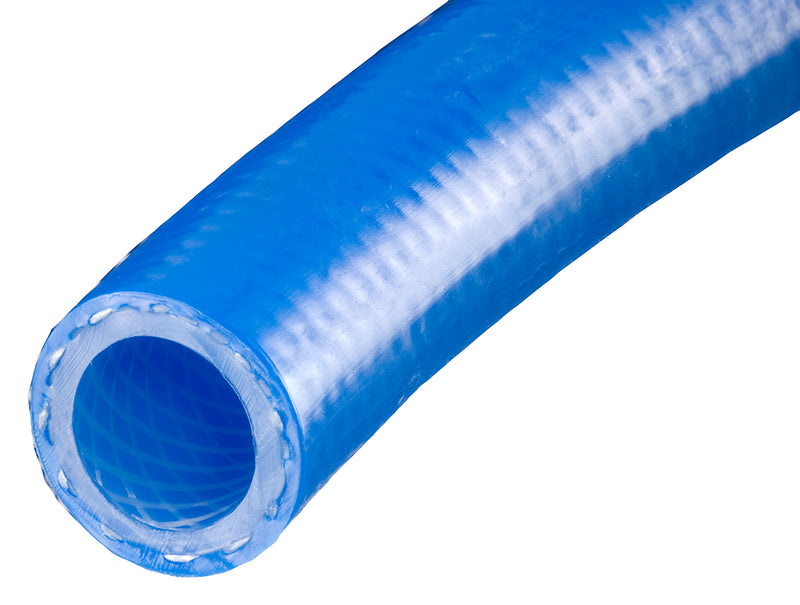

A3236-16X200 Kuriyama Kuri Tec A3236 Series High Purity Non-Toxic LLDPE Water Hose - 1" ID - 1.375" OD - 200ft

A3236-16X200 Kuri-Tec by Kuriyama | A3236 Series | High Purity Non-Toxic LLDPE Water Hose | Blue | 1" ID | 1.375" OD | EVA Copolymer | 200ft Length

Save $101.90 Save $101.90
$1,016.30
$1,016.30 - $1,016.30
$1,016.30
$914.40
$914.40 - $914.40
$914.40

Kuriyama Kuri Tec® Series A3236 High Purity Non-Toxic LLDPE Water Hose A flexible, non-contaminating food grade hose that is ideal for use in food, beverage and water applications.

Package Quantity: 200 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: A3236-16X200 Kuriyama | 200 |
Brand: Kuri Tec
Series: A3236 Series
Hose Color(s): Blue
Internal Diameter: 1in
Outer Diameter: 1.375in
Tubing Construction: LLDPE
Cover Construction: Ethylene-Vinyl Acetate Copolymer
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable NSF Requirements, RoHS Compliant

SPECIFICATIONS

Application: Transfer of food, beverages and water, Transfer of deionized water, Water sampling, Water bottling equipment, Temporary residential water supply lines Water transfer lines for semiconductor manufacturing, where applicable Environmental clean-up applications involving water and chemicals SAE Rating: N/A
Other Ratings: N/A Tube: Special co-extruded tube with the inner contact surface meeting applicable FDA(04), NSF(12) and RoHS(15) requirements.
Reinforcement: High tensile strength yarn Cover: Blue EVA Copolymer . . . complies with FDA(04) and RoHS(15) requirements.
Temperature Range: -10 deg. F (-23 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(04), NSF(12), RoHS(15)
Other Features:
  • Extremely light weight.
  • Good resistance to U. V. and weather aging.
  • Exceptionally low hydrocarbon extraction into water, as compared to the EPA MCL's (maximum contaminant levels) for drinking water.
  • Extremely low hydrocarbon absorption from contaminated water samples.
  • Excellent low temperature flexibility.
  • Excellent chemical resistance.
  • Silicone-free.
  • One-piece lengths.
  • Opaque jacket reduces tendency for algae growth in warm, sunny applications.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
A3236-08X300 1/2" 12.7mm .750" 19.1mm 200 PSI 100 PSI 300 ft. 33 lbs.
A3236-12X300 3/4" 19.1mm 1.125" 28.6mm 200 PSI 100 PSI 300ft 68 lbs.
A3236-16X200 1" 25.4mm 1.375" 34.9mm 150 PSI 75 PSI 200 ft 59 lbs.
Note: *For applications requiring minimal stretch, this hose is also available with longitudinal cords by ordering Series A3246, check with factory for minimum quantity requirements. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
