A4086-08X300 Kuri-Tec by Kuriyama | A4086 Series | High Pressure Rubber Blend Reinforced Chemical Spray & Transfer Hose | Blue | 1/2" ID | .840" OD | Polyethylene | 300ft Length

A4086-08X300 Kuri-Tec by Kuriyama | A4086 Series | High Pressure Rubber Blend Reinforced Chemical Spray & Transfer Hose | Blue | 1/2" ID | .840" OD | Polyethylene | 300ft Length

Save $88.89 Save $88.89
$888.89
$888.89 - $888.89
$888.89
$800.00
$800.00 - $800.00
$800.00

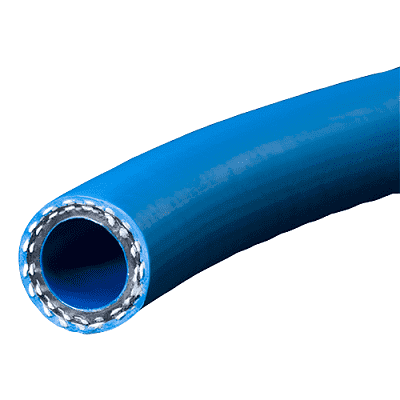

Kuriyama Kuri Tec® A4086 Series High Pressure Polyethylene Rubber Blend Reinforced Chemical Spray & Transfer Hose A premium chemical spray and transfer hose for applications requiring greater chemical-resistance - excellent for high pressure tree and orchard spraying, as well as paint, solvent and chemical transfer.

Package Quantity: 300 FT

Specifications for Variant SKU: A4086-08X300 Kuriyama | 300 |
Brand: Kuri Tec
Series: A4086 Series
Hose Color(s): Blue
Internal Diameter: 0.50in
Outer Diameter: 0.84in
Tubing Construction: LLDPE / Rubber Blend
Cover Construction: Rubber Blend
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For use in applications where additional chemical resistance is required High pressure tree, orchard and vineyard spraying, Concrete curing and spraying, Paint and solvent transfer, Chemical transfer. SAE Rating: N/A
Other Ratings: N/A Tube: Co-extruded blue LLDPE/rubber blend.
Reinforcement: High tensile strength yarn - two-pass spiral construction. Cover: Black rubber blend compound
Temperature Range: -40 deg. F (-40 deg. C) to +130 deg. F (+54 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Excellent chemical-resistance.
  • Extremely light weight.
  • Excellent low temperature properties.
  • Pin-pricked cover vents vapor - helps prevent ballooning.
  • Silicone-free.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
A4086-06X100 3/8" 9.5mm .688" 17.5mm 800 PSI 300 PSI 100 ft 11 lbs.
A4086-06X300 3/8" 9.5mm .688" 17.5mm 800 PSI 300 PSI 300 ft 33 lbs.
A4086-08X100 1/2" 12.7mm .840" 21.3mm 800 PSI 300 PSI 100 ft 15 lbs.
A4086-08X300 1/2" 12.7mm .840" 21.3mm 800 PSI 300 PSI 300 ft 45 lbs.
A4086-12X100 3/4" 19.1mm 1.140" 29.0mm 800 PSI 250 PSI 100 ft 24 lbs.
A4086-12X300 3/4" 19.1mm 1.140" 29.0mm 800 PSI 250 PSI 300 ft 72 lbs.
A4086-16X100 1" 25.4mm 1.400" 35.6mm 400 PSI 125 PSI 100 ft 33 lbs.
A4086-16X200 1" 25.4mm 1.400" 35.6mm 400 PSI 125 PSI 200 ft 65 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: Use of hydraulic or reusable-type fittings are not recommended for coupling Kuri Tec® hose products. Hose claims involving use of these fittings will be disallowed.
