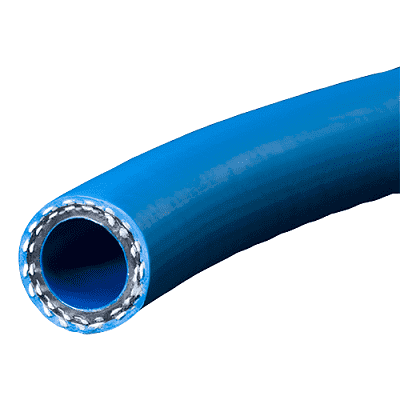

A4086-12X300 Kuri-Tec by Kuriyama | A4086 Series | High Pressure Rubber Blend Reinforced Chemical Spray & Transfer Hose | Blue | 3/4" ID | 1.140" OD | Polyethylene | 300ft Length

Save $139.56

$1,435.56

$1,435.56 - $1,435.56

$1,435.56

$1,296.00

$1,296.00 - $1,296.00

$1,296.00

Kuriyama Kuri Tec® A4086 Series High Pressure Polyethylene Rubber Blend Reinforced Chemical Spray & Transfer Hose A premium chemical spray and transfer hose for applications requiring greater chemical-resistance - excellent for high pressure tree and orchard spraying, as well as paint, solvent and chemical transfer.

Package Quantity: 300 FT

Quantity

Specifications for Variant SKU: A4086-12X300 Kuriyama \| 300 \|
Brand:	Kuri Tec
Series:	A4086 Series
Hose Color(s):	Blue
Internal Diameter:	0.75in
Outer Diameter:	1.14in
Tubing Construction:	LLDPE / Rubber Blend
Cover Construction:	Rubber Blend
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Application:	For use in applications where additional chemical resistance is required High pressure tree, orchard and vineyard spraying, Concrete curing and spraying, Paint and solvent transfer, Chemical transfer.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Co-extruded blue LLDPE/rubber blend.
Reinforcement:	High tensile strength yarn - two-pass spiral construction.	Cover:	Black rubber blend compound
Temperature Range:	-40 deg. F (-40 deg. C) to +130 deg. F (+54 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(15)
Excellent chemical-resistance. Extremely light weight. Excellent low temperature properties. Pin-pricked cover vents vapor - helps prevent ballooning. Silicone-free.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Coil
A4086-06X100	3/8"	9.5mm	.688"	17.5mm	800 PSI	300 PSI	100 ft	11 lbs.
A4086-06X300	3/8"	9.5mm	.688"	17.5mm	800 PSI	300 PSI	300 ft	33 lbs.
A4086-08X100	1/2"	12.7mm	.840"	21.3mm	800 PSI	300 PSI	100 ft	15 lbs.
A4086-08X300	1/2"	12.7mm	.840"	21.3mm	800 PSI	300 PSI	300 ft	45 lbs.
A4086-12X100	3/4"	19.1mm	1.140"	29.0mm	800 PSI	250 PSI	100 ft	24 lbs.
A4086-12X300	3/4"	19.1mm	1.140"	29.0mm	800 PSI	250 PSI	300 ft	72 lbs.
A4086-16X100	1"	25.4mm	1.400"	35.6mm	400 PSI	125 PSI	100 ft	33 lbs.
A4086-16X200	1"	25.4mm	1.400"	35.6mm	400 PSI	125 PSI	200 ft	65 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: Use of hydraulic or reusable-type fittings are not recommended for coupling Kuri Tec® hose products. Hose claims involving use of these fittings will be disallowed.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
