C61-12-12 by Kurt Hydraulics | Code 61 Flange for 3/4" Hose ID

C61-12-12 by Kurt Hydraulics | Code 61 Flange for 3/4" Hose ID

Save $14.13 Save $14.13
$35.32
$35.32 - $35.32
$35.32
$21.19
$21.19 - $21.19
$21.19

by Kurt Hydraulics
C61 - Code 61 Flange Straight Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C61-12-12 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Code 61 Flange

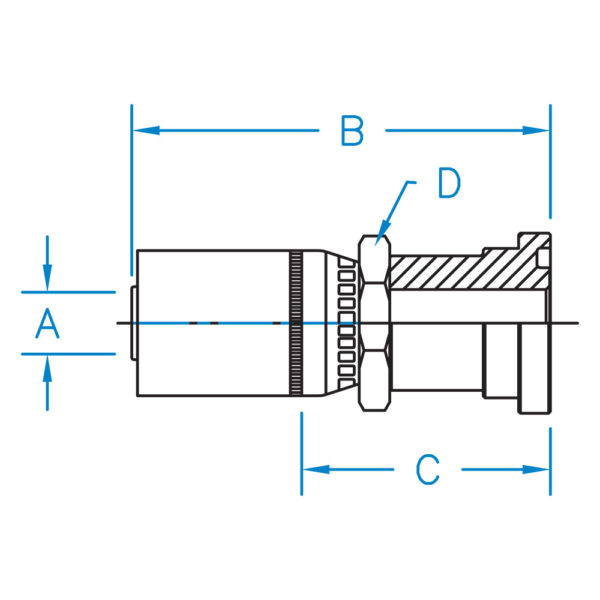

Part Number A B C D Hose ID
(In)		 Thread
C61-08-08 0.500 3.514 1.826 7/8 1/2" N/A
C61-08-12 0.500 3.000 1.310 1-1/2 1/2" N/A
C61-12-12 0.500 3.740 2.147 1-1/8 3/4" N/A
C61-12-16 0.750 3.965 2.085 1-3/8 3/4" N/A
C61-16-16 1.000 4.425 1.286 1-3/8 1.000" N/A
C61-16-20 1.000 5.126 2.846 1-3/8 1.000" N/A
C61-20-20 1.250 N/A N/A N/A 1-1/4" N/A
C61-20-24 1.500 N/A N/A N/A 1-1/2" N/A

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
