C61-20-24 by Kurt Hydraulics | Jump Size | Code 61 Flange for 1-1/4" Hose ID

Name: C61-20-24 by Kurt Hydraulics | Jump Size | Code 61 Flange for 1-1/4" Hose ID
Brand: Kurt Hydraulics
SKU: C61-20-24 Kurt
Price: 81.65 USD
Availability: InStock

Save $54.43

$136.08

$136.08 - $136.08

$136.08

$81.65

$81.65 - $81.65

$81.65

by Kurt Hydraulics
C61 - Code 61 Flange Straight Rigid

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C61-20-24 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Hose Barb, 1-1/2in Code 61 Flange
Special Properties:	Jump Size

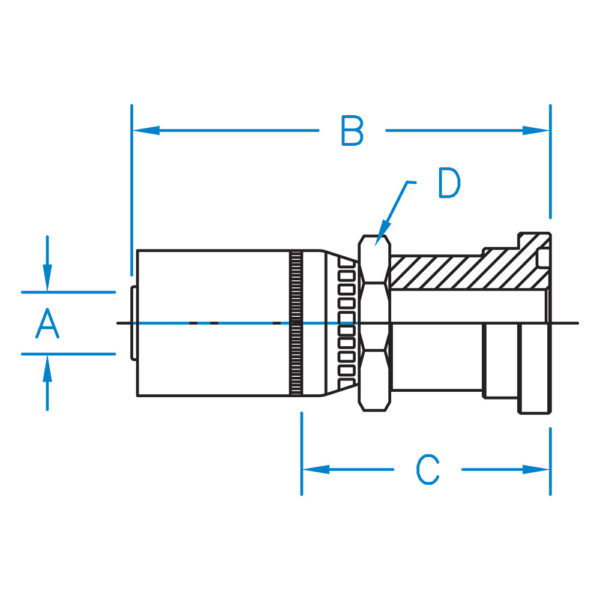

Part Number	A	B	C	D	Hose ID (In)	Thread
C61-08-08	0.500	3.514	1.826	7/8	1/2"	N/A
C61-08-12	0.500	3.000	1.310	1-1/2	1/2"	N/A
C61-12-12	0.500	3.740	2.147	1-1/8	3/4"	N/A
C61-12-16	0.750	3.965	2.085	1-3/8	3/4"	N/A
C61-16-16	1.000	4.425	1.286	1-3/8	1.000"	N/A
C61-16-20	1.000	5.126	2.846	1-3/8	1.000"	N/A
C61-20-20	1.250	N/A	N/A	N/A	1-1/4"	N/A
C61-20-24	1.500	N/A	N/A	N/A	1-1/2"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
