C6160-20-20-W by Kurt Hydraulics | Code 61 Flange | 60° Elbow | for 1-1/4" Hose ID

Name: C6160-20-20-W by Kurt Hydraulics | Code 61 Flange | 60° Elbow | for 1-1/4" Hose ID
Brand: Kurt Hydraulics
SKU: C6160-20-20-W Kurt
Price: 56.88 USD
Availability: InStock

Save $7.11

$63.99

$63.99 - $63.99

$63.99

$56.88

$56.88 - $56.88

$56.88

by Kurt Hydraulics
C6160-W - C61 - Code 61 Flange 60 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: C6160-20-20-W Kurt
Series:	C6160 Series
Shape (Orientation):	60 Degree
Ends Configuration:	1-1/4in Hose Barb, 1-1/4in Code 61 Flange

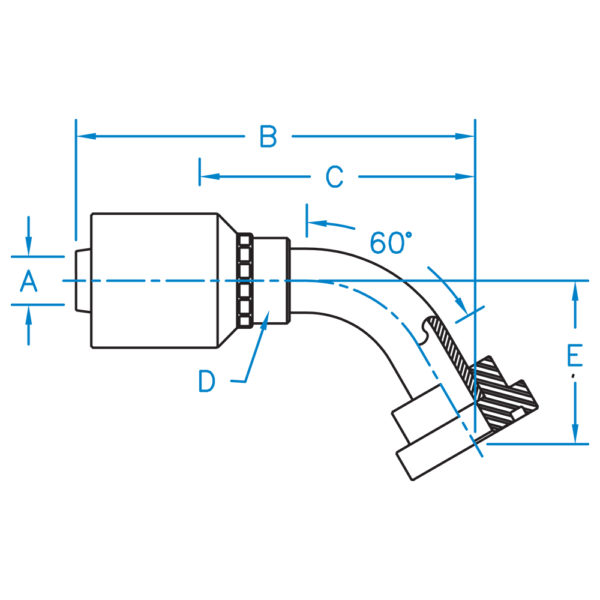

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6160-08-12-W	0.500	4.301	2.961	1.0R	1.409	1/2"	N/A
C6160-12-12-W	0.750	4.790	3.000	1.0R	1.410	3/4"	N/A
C6160-12-16-W	0.750	4.790	3.000	1.0R	1.410	3/4"	N/A
C6160-16-16-W	1.000	5.640	3.520	1-5/16R	1.770	1.000"	N/A
C6160-16-20-W	1.000	5.640	3.520	1-5/16R	1.770	1.000"	N/A
C6160-20-20-W	1.250	6.450	4.000	1-5/8R	1.710	1-1/4"	N/A
C6160-20-24-W	1.250	6.480	4.030	1-5/8R	1.770	1-1/4"	N/A
C6160-24-24-W	1.500	7.410	4.810	2.0R	2.100	1-1/2"	N/A
C6160-32-32-W	2.000	8.700	5.450	2-1/2R	3.070	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
