C6160-32-32-W by Kurt Hydraulics | Code 61 Flange | 60° Elbow | for 2" Hose ID

C6160-32-32-W by Kurt Hydraulics | Code 61 Flange | 60° Elbow | for 2" Hose ID

Save $13.45 Save $13.45
$121.06
$121.06 - $121.06
$121.06
$107.61
$107.61 - $107.61
$107.61

by Kurt Hydraulics
C6160-W - C61 - Code 61 Flange 60 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C6160-32-32-W Kurt
Series: C6160 Series
Shape (Orientation): 60 Degree
Ends Configuration: 2in Hose Barb, 2in Code 61 Flange

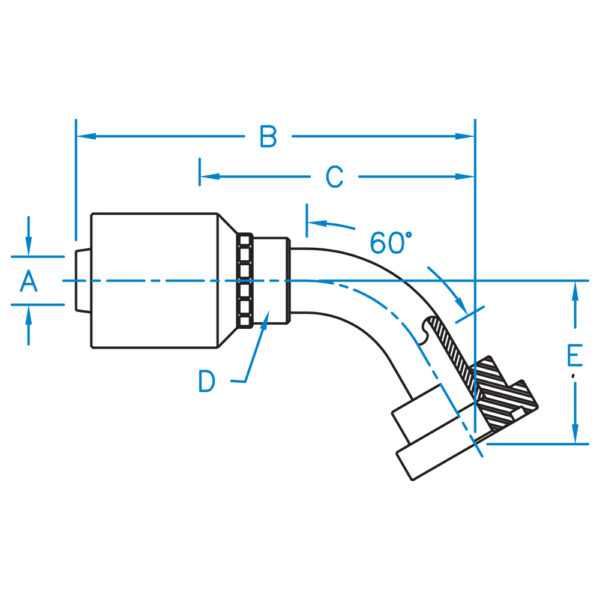

Part Number A B C D E Hose ID
(In)		 Thread
C6160-08-12-W 0.500 4.301 2.961 1.0R 1.409 1/2" N/A
C6160-12-12-W 0.750 4.790 3.000 1.0R 1.410 3/4" N/A
C6160-12-16-W 0.750 4.790 3.000 1.0R 1.410 3/4" N/A
C6160-16-16-W 1.000 5.640 3.520 1-5/16R 1.770 1.000" N/A
C6160-16-20-W 1.000 5.640 3.520 1-5/16R 1.770 1.000" N/A
C6160-20-20-W 1.250 6.450 4.000 1-5/8R 1.710 1-1/4" N/A
C6160-20-24-W 1.250 6.480 4.030 1-5/8R 1.770 1-1/4" N/A
C6160-24-24-W 1.500 7.410 4.810 2.0R 2.100 1-1/2" N/A
C6160-32-32-W 2.000 8.700 5.450 2-1/2R 3.070 2.000" N/A
