CAT45-20-24-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | CAT Flange | 45° Elbow | for 1-1/4" Hose ID

Save $11.92

$107.28

$107.28 - $107.28

$107.28

$95.36

$95.36 - $95.36

$95.36

by Kurt Hydraulics
CAT45-JJ - Cat Flange 45 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: CAT45-20-24-JJ Kurt
Series:	CAT45 Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Hose Barb, 1-1/2in CAT Flange
Special Properties:	Jump Size

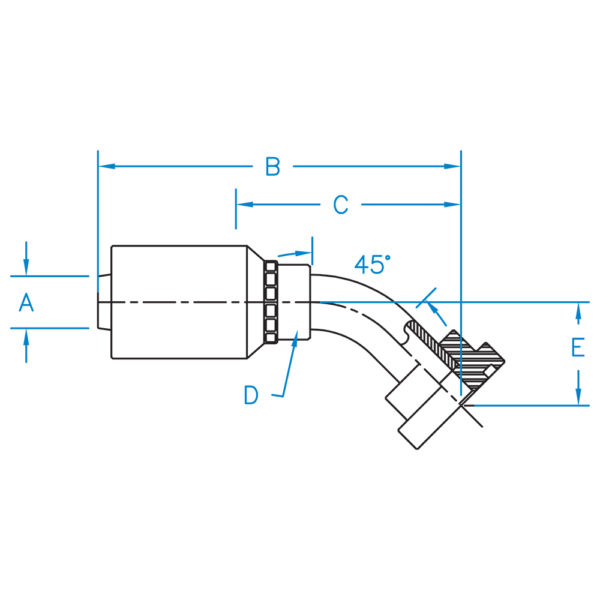

Part Number	A	B	C	D	E	Hose ID (In)	Thread
CAT45-20-20-JJ	1.250	6.13	3.53	1-3/4R	1.46	1-1/4"	N/A
CAT45-20-24-JJ	1.250	6.435	3.835	1-3/4R	1.568	1-1/4"	N/A
CAT45-24-24-JJ	1.500	7.71	5	2-1/8R	1.568	1-1/2"	N/A
CAT45-32-32-JJ	N/A	N/A	N/A	N/A	N/A	N/A	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
