CAT45-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | CAT Flange | 45° Elbow | for 2" Hose ID

Name: CAT45-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | CAT Flange | 45° Elbow | for 2" Hose ID
Brand: Kurt Hydraulics
SKU: CAT45-32-32-JJ Kurt
Price: 169.08 USD
Availability: InStock

Save $21.14

$190.22

$190.22 - $190.22

$190.22

$169.08

$169.08 - $169.08

$169.08

by Kurt Hydraulics
CAT45-JJ - Cat Flange 45 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: CAT45-32-32-JJ Kurt
Series:	CAT45 Series
Shape (Orientation):	45 Degree
Ends Configuration:	2in Hose Barb, 2in Cat Flange

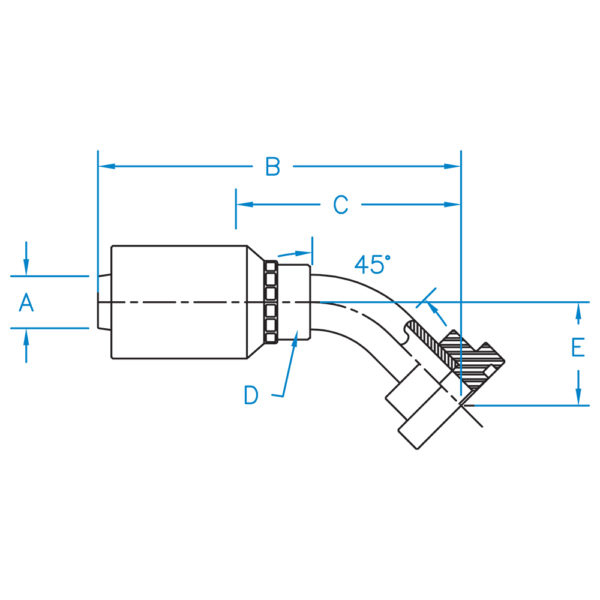

Part Number	A	B	C	D	E	Hose ID (In)	Thread
CAT45-20-20-JJ	1.250	6.13	3.53	1-3/4R	1.46	1-1/4"	N/A
CAT45-20-24-JJ	1.250	6.435	3.835	1-3/4R	1.568	1-1/4"	N/A
CAT45-24-24-JJ	1.500	7.71	5	2-1/8R	1.568	1-1/2"	N/A
CAT45-32-32-JJ	N/A	N/A	N/A	N/A	N/A	N/A	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
