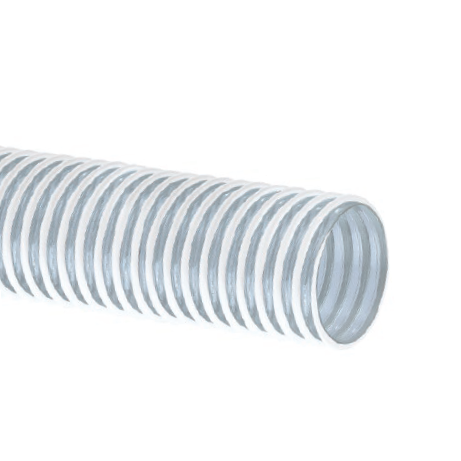

CG250X100 Kuriyama Tigerflex CG Series Cover Guard PVC Ducting and Cover Protection Hose - 2-1/2" - 100ft

CG250X100 Tigerflex by Kuriyama | CG Series | Cover Guard Ducting and Cover Protection Hose | 2-1/2" ID | PVC | 100ft Length

Save $135.36

$473.76

$473.76 - $473.76

$473.76

$338.40

$338.40 - $338.40

$338.40

Kuriyama Tigerflex CG™ Series Cover Guard PVC Ducting and Cover Protection Hose

Package Quantity: 100 FT

Specifications for Variant SKU: CG250X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	CG Series
Hose Color(s):	White/Off-White & Clear/Semi-Clear
Internal Diameter:	2.50in
Outer Diameter:	2.81in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable MSHA Standards, RoHS Compliant
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Cable and hose bundle protection (MSHA), Ducting, Ventilation and fume removal, Dust collection, Mine supply line cover protection	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	MSHA(09), RoHS(10)
MSHA(09) Approved - Meets U.S. Dept. of Labor Administration requirements for flame-resistance for use in mines for protection of hose bundles. Transparent Construction - "See-the-flow." Allows for visual confiurmation of material flow. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard LenGTGh	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
CG200X100	2"	50.8mm	2.30"	58.4mm	12 PSI	6 PSI	10 in. Hg	5 in. Hg	2"	100ft	0.28 lbs
CG238X100	2-3/8"	60.3mm	2.76"	70.1mm	12 PSI	6 PSI	10 in. Hg	5 in. Hg	2"	100ft	0.38 lbs
CG250X100	2-1/2"	63.5mm	2.81"	71.3mm	10 PSI	5 PSI	8 in. Hg	4 in. Hg	2"	100ft	0.39 lbs
CG300X100	3"	76.2mm	3.35"	85.0mm	8 PSI	4 PSI	7 in. Hg	3 in. Hg	3"	100ft	0.45 lbs
CG350X100	3-1/2"	88.9mm	3.83"	97.4mm	8 PSI	4 PSI	7 in. Hg	3 in. Hg	3"	100ft	0.51 lbs
CG400X100	4"	102.4mm	4.39"	111.4mm	6 PSI	3 PSI	6 in. Hg	3 in. Hg	3"	100ft	0.64 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
