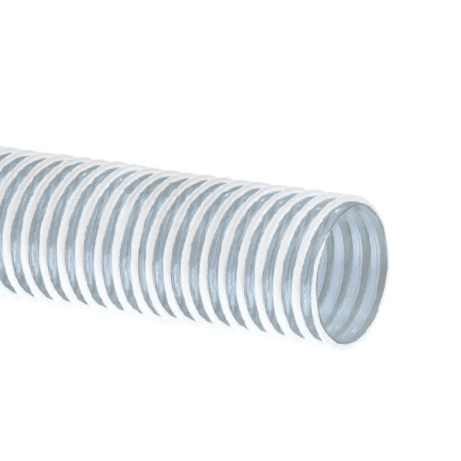

CG400X100 Kuriyama Tigerflex CG Series Cover Guard PVC Ducting and Cover Protection Hose - 4" - 100ft

CG400X100 Tigerflex by Kuriyama | CG Series | Cover Guard Ducting and Cover Protection Hose | 4" ID | PVC | 100ft Length

Save $225.60 Save $225.60
$789.60
$789.60 - $789.60
$789.60
$564.00
$564.00 - $564.00
$564.00

Kuriyama Tigerflex CG™ Series Cover Guard PVC Ducting and Cover Protection Hose


Package Quantity: 100 FT

Specifications for Variant SKU: CG400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: CG Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.39in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable MSHA Standards, RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Cable and hose bundle protection (MSHA), Ducting, Ventilation and fume removal, Dust collection, Mine supply line cover protection SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications MSHA(09), RoHS(10)
Other Features:
  • MSHA(09) Approved - Meets U.S. Dept. of Labor Administration requirements for flame-resistance for use in mines for protection of hose bundles.
  • Transparent Construction - "See-the-flow." Allows for visual confiurmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard LenGTGh Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
CG200X100 2" 50.8mm 2.30" 58.4mm 12 PSI 6 PSI 10 in. Hg 5 in. Hg 2" 100ft 0.28 lbs
CG238X100 2-3/8" 60.3mm 2.76" 70.1mm 12 PSI 6 PSI 10 in. Hg 5 in. Hg 2" 100ft 0.38 lbs
CG250X100 2-1/2" 63.5mm 2.81" 71.3mm 10 PSI 5 PSI 8 in. Hg 4 in. Hg 2" 100ft 0.39 lbs
CG300X100 3" 76.2mm 3.35" 85.0mm 8 PSI 4 PSI 7 in. Hg 3 in. Hg 3" 100ft 0.45 lbs
CG350X100 3-1/2" 88.9mm 3.83" 97.4mm 8 PSI 4 PSI 7 in. Hg 3 in. Hg 3" 100ft 0.51 lbs
CG400X100 4" 102.4mm 4.39" 111.4mm 6 PSI 3 PSI 6 in. Hg 3 in. Hg 3" 100ft 0.64 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
