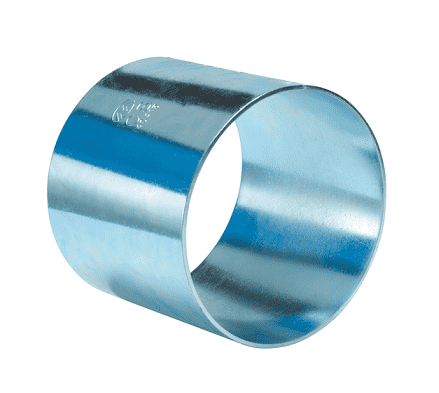

CRS-CS1001012 by Kuriyama | Kuri-Krimp Crimp Sleeve | Hose ID: 10" | Sleeve ID: 10.75" | Wall Thickness: 0.120" | Plated Steel

Save $27.65

$96.78

$96.78 - $96.78

$96.78

$69.13

$69.13 - $69.13

$69.13

Kuriyama Couplings™ - Kuri-Krimp™ Crimp Sleeves - Plated Steel

Specifications for Variant SKU: CRS-CS1001012 Kuriyama
Shape (Orientation):	No Orientation
Material(s):	Plated Steel

Applications:
The Plated Steel Crimp Sleeves are available for industrial hoses with ID sizes of 1", 1 1/2", 2", 2 1/2", 3", 4", 6", 8", 10" and 12". For use with Kuriyama Hoses
Features:
N/A
Materials:
Plated Steel

Part Number	Hose ID (in.)	Sleeve ID (in.)	Wall Thickness (in.)	Length (in.)	Weight (Lbs.)
CRS-CS10108	1"	1.50"	0.059"	2.29"	0.19 lbs.
CRS-CS10109	1"	1.56"	0.059"	2.29"	0.20 lbs.
CRS-CS15200	1-1/2"	2.00"	0.059"	2.36"	0.25 lbs.
CRS-CS15202	1-1/2"	2.12"	0.059"	2.36"	0.26 lbs.
CRS-CS20209	2"	2.56"	0.059"	2.79"	0.37 lbs.
CRS-CS20210	2"	2.62"	0.059"	2.79"	0.40 lbs.
CRS-CS20211	2"	2.68"	0.059"	2.79"	0.40 lbs.
CRS-CS25302	2-1/2"	3.12"	0.059"	3.11"	0.52 lbs.
CRS-CS25304	2-1/2"	3.25"	0.059"	3.11"	0.54 lbs.
CRS-CS30310	3"	3.62"	0.091"	3.94"	1.19 lbs.
CRS-CS30312	3"	3.75"	0.091"	3.94"	1.21 lbs.
CRS-CS30313	3"	3.81"	0.091"	3.94"	1.23 lbs.
CRS-CS30400	3"	4.00"	0.091"	3.94"	1.30 lbs.
CRS-CS40411	4"	4.68"	0.091"	4.19"	1.61 lbs.
CRS-CS40412	4"	4.75"	0.091"	4.19"	1.63 lbs.
CRS-CS40413	4"	4.81"	0.091"	4.19"	1.65 lbs.
CRS-CS40500	4"	5.00"	0.091"	4.19"	1.72 lbs.
CRS-CS60610	6"	6.63"	0.118"	5.67"	4.02 lbs.
CRS-CS60612	6"	6.75"	0.118"	5.67"	4.10 lbs.
CRS-CS60614	6"	6.88"	0.118"	5.67"	4.17 lbs.
CRS-CS60700	6"	7.00"	0.118"	5.67"	4.24 lbs.
CRS-CS60704	6"	7.25"	0.118"	5.67"	4.39 lbs.
CRS-CS60706	6"	7.38"	0.118"	5.67"	4.47 lbs.
CRS-CS80812	8"	8.75"	0.118"	6.50"	6.06 lbs.
CRS-CS80814	8"	8.88"	0.118"	6.50"	6.15 lbs.
CRS-CS80900	8"	9.00"	0.118"	6.50"	6.23 lbs.
CRS-CS80902	8"	9.13"	0.118"	6.50"	6.32 lbs.
CRS-CS80904	8"	9.25"	0.118"	6.50"	6.41 lbs.
CRS-CS80908	8"	9.50"	0.118"	6.50"	6.58 lbs.
CRS-CS1001012	10"	10.75"	0.120"	6.50"	7.42 lbs.
CRS-CS1001100	10"	11.00"	0.120"	6.50"	7.60 lbs.
CRS-CS1001104	10"	11.25"	0.120"	6.50"	7.78 lbs.
CRS-CS1201212	12"	12.75"	0.120"	9.00"	12.18 lbs.
CRS-CS1201300	12"	13.00"	0.120"	9.00"	12.40 lbs.
CRS-CS12013042	12"	13.25"	0.120"	9.00"	12.64 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
