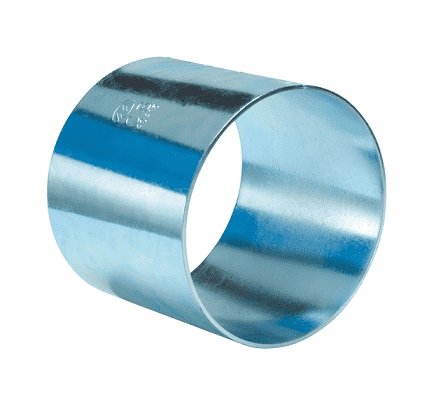

CRS-CS40500 by Kuriyama | Kuri-Krimp Crimp Sleeve | Hose ID: 4" | Sleeve ID: 5.00" | Wall Thickness: 0.091" | Plated Steel

CRS-CS40500 by Kuriyama | Kuri-Krimp Crimp Sleeve | Hose ID: 4" | Sleeve ID: 5.00" | Wall Thickness: 0.091" | Plated Steel

Save $5.15 Save $5.15
$18.03
$18.03 - $18.03
$18.03
$12.88
$12.88 - $12.88
$12.88

Kuriyama Couplings™ - Kuri-Krimp™ Crimp Sleeves - Plated Steel

Specifications for Variant SKU: CRS-CS40500 Kuriyama
Shape (Orientation): No Orientation
Material(s): Plated Steel
Applications:
  • The Plated Steel Crimp Sleeves are available for industrial hoses with ID sizes of 1", 1 1/2", 2", 2 1/2", 3", 4", 6", 8", 10" and 12".
  • For use with Kuriyama Hoses
Features:
  • N/A
Materials:
  • Plated Steel
Part Number Hose ID (in.) Sleeve ID (in.) Wall Thickness (in.) Length (in.) Weight (Lbs.)
CRS-CS10108 1" 1.50" 0.059" 2.29" 0.19 lbs.
CRS-CS10109 1" 1.56" 0.059" 2.29" 0.20 lbs.
CRS-CS15200 1-1/2" 2.00" 0.059" 2.36" 0.25 lbs.
CRS-CS15202 1-1/2" 2.12" 0.059" 2.36" 0.26 lbs.
CRS-CS20209 2" 2.56" 0.059" 2.79" 0.37 lbs.
CRS-CS20210 2" 2.62" 0.059" 2.79" 0.40 lbs.
CRS-CS20211 2" 2.68" 0.059" 2.79" 0.40 lbs.
CRS-CS25302 2-1/2" 3.12" 0.059" 3.11" 0.52 lbs.
CRS-CS25304 2-1/2" 3.25" 0.059" 3.11" 0.54 lbs.
CRS-CS30310 3" 3.62" 0.091" 3.94" 1.19 lbs.
CRS-CS30312 3" 3.75" 0.091" 3.94" 1.21 lbs.
CRS-CS30313 3" 3.81" 0.091" 3.94" 1.23 lbs.
CRS-CS30400 3" 4.00" 0.091" 3.94" 1.30 lbs.
CRS-CS40411 4" 4.68" 0.091" 4.19" 1.61 lbs.
CRS-CS40412 4" 4.75" 0.091" 4.19" 1.63 lbs.
CRS-CS40413 4" 4.81" 0.091" 4.19" 1.65 lbs.
CRS-CS40500 4" 5.00" 0.091" 4.19" 1.72 lbs.
CRS-CS60610 6" 6.63" 0.118" 5.67" 4.02 lbs.
CRS-CS60612 6" 6.75" 0.118" 5.67" 4.10 lbs.
CRS-CS60614 6" 6.88" 0.118" 5.67" 4.17 lbs.
CRS-CS60700 6" 7.00" 0.118" 5.67" 4.24 lbs.
CRS-CS60704 6" 7.25" 0.118" 5.67" 4.39 lbs.
CRS-CS60706 6" 7.38" 0.118" 5.67" 4.47 lbs.
CRS-CS80812 8" 8.75" 0.118" 6.50" 6.06 lbs.
CRS-CS80814 8" 8.88" 0.118" 6.50" 6.15 lbs.
CRS-CS80900 8" 9.00" 0.118" 6.50" 6.23 lbs.
CRS-CS80902 8" 9.13" 0.118" 6.50" 6.32 lbs.
CRS-CS80904 8" 9.25" 0.118" 6.50" 6.41 lbs.
CRS-CS80908 8" 9.50" 0.118" 6.50" 6.58 lbs.
CRS-CS1001012 10" 10.75" 0.120" 6.50" 7.42 lbs.
CRS-CS1001100 10" 11.00" 0.120" 6.50" 7.60 lbs.
CRS-CS1001104 10" 11.25" 0.120" 6.50" 7.78 lbs.
CRS-CS1201212 12" 12.75" 0.120" 9.00" 12.18 lbs.
CRS-CS1201300 12" 13.00" 0.120" 9.00" 12.40 lbs.
CRS-CS12013042 12" 13.25" 0.120" 9.00" 12.64 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
