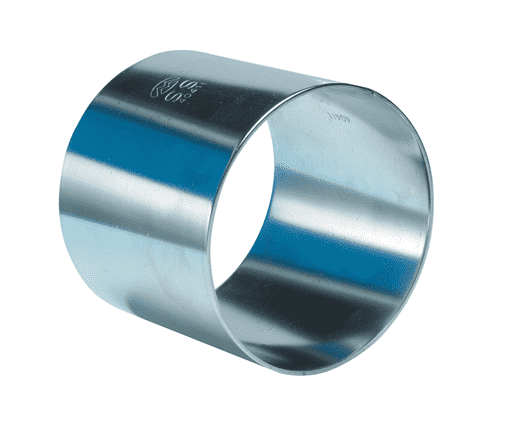

CRS-SS10109 by Kuriyama | Kuri-Krimp Crimp Sleeve | Hose ID 1" | Sleeve ID 1.56" | Wall Thickness 0.059" | 304 Stainless Steel

CRS-SS10109 by Kuriyama | Kuri-Krimp Crimp Sleeve | Hose ID 1" | Sleeve ID 1.56" | Wall Thickness 0.059" | 304 Stainless Steel

Save $1.27 Save $1.27
$6.68
$6.68 - $6.68
$6.68
$5.41
$5.41 - $5.41
$5.41

Kuriyama Couplings™ - Kuri-Krimp™ Crimp Sleeves - 304 Stainless Steel

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CRS-SS10109 Kuriyama
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Applications:
  • The 304 Stainless Steel Crimp Sleeves are available for industrial hoses with ID sizes of 1", 1 1/2", 2", 2 1/2", 3", 4", 6", 8", 10" and 12".
  • For use with Kuriyama Hoses
Features:
  • N/A
Materials:
  • 304 Stainless Steel
Part Number Hose ID (in.) Sleeve ID (in.) Wall Thickness (in.) Length (in.) Weight (Lbs.)
CRS-SS10108 1" 1.50" 0.059" 2.29" 0.20 lbs.
CRS-SS10109 1" 1.56" 0.059" 2.29" 0.21 lbs.
CRS-SS15200 1-1/2" 2.00" 0.059" 2.36" 0.27 lbs.
CRS-SS15202 1-1/2" 2.12" 0.059" 2.36" 0.29 lbs.
CRS-SS20209 2" 2.56" 0.059" 2.79" 0.40 lbs.
CRS-SS20210 2" 2.62" 0.059" 2.79" 0.43 lbs.
CRS-SS20211 2" 2.68" 0.059" 2.79" 0.43 lbs.
CRS-SS25302 2-1/2" 3.12" 0.059" 3.11" 0.56 lbs.
CRS-SS25304 2-1/2" 3.25" 0.059" 3.11" 0.58 lbs.
CRS-SS30310 3" 3.62" 0.098" 3.94" 1.29 lbs.
CRS-SS30312 3" 3.75" 0.098" 3.94" 1.31 lbs.
CRS-SS30313 3" 3.81" 0.098" 3.94" 1.33 lbs.
CRS-SS30400 3" 4.00" 0.098" 3.94" 1.40 lbs.
CRS-SS40411 4" 4.68" 0.098" 4.19" 1.74 lbs.
CRS-SS40412 4" 4.75" 0.098" 4.19" 1.76 lbs.
CRS-SS40413 4" 4.81" 0.098" 4.19" 1.78 lbs.
CRS-SS40500 4" 5.00" 0.098" 4.19" 1.86 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
