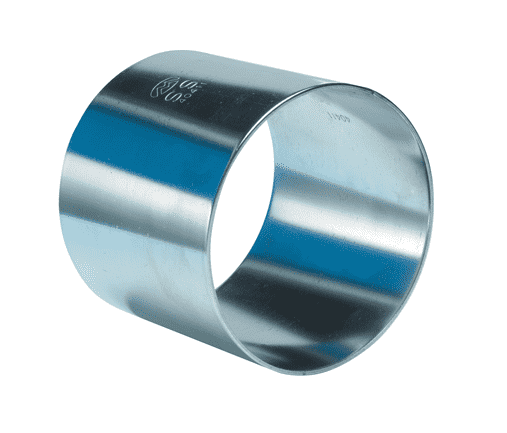

CRS-SS40500 by Kuriyama | Kuri-Krimp Crimp Sleeve | Hose ID 4" | Sleeve ID 5.00" | Wall Thickness 0.098" | 304 Stainless Steel

Save $5.69

$29.90

$29.90 - $29.90

$29.90

$24.21

$24.21 - $24.21

$24.21

Kuriyama Couplings™ - Kuri-Krimp™ Crimp Sleeves - 304 Stainless Steel

Quantity

Specifications for Variant SKU: CRS-SS40500 Kuriyama
Shape (Orientation):	No Orientation
Material(s):	304 Stainless Steel

Applications:
The 304 Stainless Steel Crimp Sleeves are available for industrial hoses with ID sizes of 1", 1 1/2", 2", 2 1/2", 3", 4", 6", 8", 10" and 12". For use with Kuriyama Hoses
Features:
N/A
Materials:
304 Stainless Steel

Part Number	Hose ID (in.)	Sleeve ID (in.)	Wall Thickness (in.)	Length (in.)	Weight (Lbs.)
CRS-SS10108	1"	1.50"	0.059"	2.29"	0.20 lbs.
CRS-SS10109	1"	1.56"	0.059"	2.29"	0.21 lbs.
CRS-SS15200	1-1/2"	2.00"	0.059"	2.36"	0.27 lbs.
CRS-SS15202	1-1/2"	2.12"	0.059"	2.36"	0.29 lbs.
CRS-SS20209	2"	2.56"	0.059"	2.79"	0.40 lbs.
CRS-SS20210	2"	2.62"	0.059"	2.79"	0.43 lbs.
CRS-SS20211	2"	2.68"	0.059"	2.79"	0.43 lbs.
CRS-SS25302	2-1/2"	3.12"	0.059"	3.11"	0.56 lbs.
CRS-SS25304	2-1/2"	3.25"	0.059"	3.11"	0.58 lbs.
CRS-SS30310	3"	3.62"	0.098"	3.94"	1.29 lbs.
CRS-SS30312	3"	3.75"	0.098"	3.94"	1.31 lbs.
CRS-SS30313	3"	3.81"	0.098"	3.94"	1.33 lbs.
CRS-SS30400	3"	4.00"	0.098"	3.94"	1.40 lbs.
CRS-SS40411	4"	4.68"	0.098"	4.19"	1.74 lbs.
CRS-SS40412	4"	4.75"	0.098"	4.19"	1.76 lbs.
CRS-SS40413	4"	4.81"	0.098"	4.19"	1.78 lbs.
CRS-SS40500	4"	5.00"	0.098"	4.19"	1.86 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
