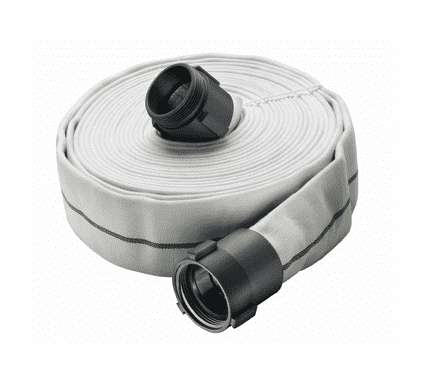

DJ150NPSHX50 by Kuriyama | Layflat Double Jacket Mill Discharge Assembly with Aluminum Rocker | White | 1-1/2" Male NPSH x 1-1/2" Female NPSH | 200 PSI | 50ft Length

DJ150NPSHX50 by Kuriyama | Layflat Double Jacket Mill Discharge Assembly with Aluminum Rocker | White | 1-1/2" Male NPSH x 1-1/2" Female NPSH | 200 PSI | 50ft Length

Save $15.81 Save $15.81
$158.17
$158.17 - $158.17
$158.17
$142.36
$142.36 - $142.36
$142.36

Kuriyama Layflat Hoses - Mill Discharge Assemblies - White with Blue Stripe

Double Jacket "Contractor Grade" Coupled with Male and Female Aluminum Rocker Lug Couplings
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DJ150NPSHX50 Kuriyama
Hose Color(s): White/Off-White
Internal Diameter: 1.5in
Tubing Construction: Natural Rubber
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Male NPSH, 1-1/2in Female NPSH

SPECIFICATIONS

Application: Municipal washdown Hydrant-to-truck water supply line Heavy duty equipment or pump rental Ship deck washdown SAE Rating: N/A
Other Ratings: N/A Tube: Rubber Tube
Reinforcement: Polyester Yarn Cover: N/A
Temperature Range: -25 deg. F (-31 deg. C) to 185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Smooth natural rubber tube - Provides strength and flexibility.
  • Double Jacket - Provides greater abrasion resistance.
  • Packaging/storage - Individually packed in cartons for ease of handling and shipping.
  • Hose coils easily for storage.Wide range of operating temperatures - Hose may be used in temperatures from -25 deg. F (-31 deg. C) to 185 deg. F (+85 deg. C) without stiffening.
  • Easy identification - White cover with single blue stripe.
  • Packaging/ storage - Individually packed in cartons for ease of handling and shipping. Hose coils easily for storage.
  • Note: Not intended for use as a fire hose.
Part Number End Type Size Size Length Thread Max. Working Pressure Weight
(in.) (mm) (ft) (PSI) (Lbs/Coil)
DJ150NSTX50 1-1/2" Male NST x 1-1/2" Female NST 1-1/2" 38.1mm 50ft NST 200 PSI 12 lbs
DJ150NPSHX50 1-1/2" Male NPSH x 1-1/2" Female NPSH 1-1/2" 38.1mm 50ft NPSH 200 PSI 12 lbs
DJ250NSTX50 2-1/2" Male NST x 2-1/2" Female NST 2-1/2" 63.5mm 50ft NST 200 PSI 23 lbs
DJ250NPSHX50 2-1/2" Male NPSH x 2-1/2" Female NPSH 2-1/2" 63.5mm 50ft NPSH 200 PSI 23 lbs
