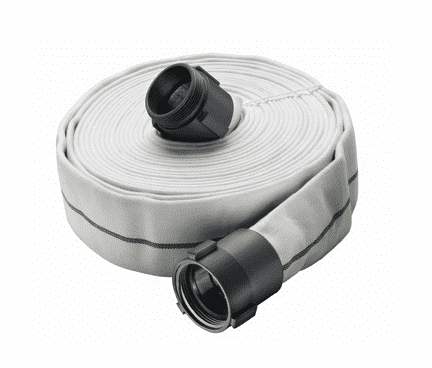

DJ250NSTX50 by Kuriyama | Layflat Double Jacket Mill Discharge Assembly with Aluminum Rocker | White | 2-1/2" Male NST x 2-1/2" Female NST | 200 PSI | 50ft Length

DJ250NSTX50 by Kuriyama | Layflat Double Jacket Mill Discharge Assembly with Aluminum Rocker | White | 2-1/2" Male NST x 2-1/2" Female NST | 200 PSI | 50ft Length

Save $99.35 Save $99.35
$347.72
$347.72 - $347.72
$347.72
$248.37
$248.37 - $248.37
$248.37

Kuriyama Layflat Hoses - Mill Discharge Assemblies - White with Blue Stripe

Double Jacket "Contractor Grade" Coupled with Male and Female Aluminum Rocker Lug Couplings
Specifications for Variant SKU: DJ250NSTX50 Kuriyama
Hose Color(s): White/Off-White
Internal Diameter: 2.5in
Tubing Construction: Natural Rubber
Cover Construction: Polyester Textile Braid
Ends Configuration: 2-1/2in Male NST, 2-1/2in Female NST

SPECIFICATIONS

Application: Municipal washdown Hydrant-to-truck water supply line Heavy duty equipment or pump rental Ship deck washdown SAE Rating: N/A
Other Ratings: N/A Tube: Rubber Tube
Reinforcement: Polyester Yarn Cover: N/A
Temperature Range: -25 deg. F (-31 deg. C) to 185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Smooth natural rubber tube - Provides strength and flexibility.
  • Double Jacket - Provides greater abrasion resistance.
  • Packaging/storage - Individually packed in cartons for ease of handling and shipping.
  • Hose coils easily for storage.Wide range of operating temperatures - Hose may be used in temperatures from -25 deg. F (-31 deg. C) to 185 deg. F (+85 deg. C) without stiffening.
  • Easy identification - White cover with single blue stripe.
  • Packaging/ storage - Individually packed in cartons for ease of handling and shipping. Hose coils easily for storage.
  • Note: Not intended for use as a fire hose.
Part Number End Type Size Size Length Thread Max. Working Pressure Weight
(in.) (mm) (ft) (PSI) (Lbs/Coil)
DJ150NSTX50 1-1/2" Male NST x 1-1/2" Female NST 1-1/2" 38.1mm 50ft NST 200 PSI 12 lbs
DJ150NPSHX50 1-1/2" Male NPSH x 1-1/2" Female NPSH 1-1/2" 38.1mm 50ft NPSH 200 PSI 12 lbs
DJ250NSTX50 2-1/2" Male NST x 2-1/2" Female NST 2-1/2" 63.5mm 50ft NST 200 PSI 23 lbs
DJ250NPSHX50 2-1/2" Male NPSH x 2-1/2" Female NPSH 2-1/2" 63.5mm 50ft NPSH 200 PSI 23 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
