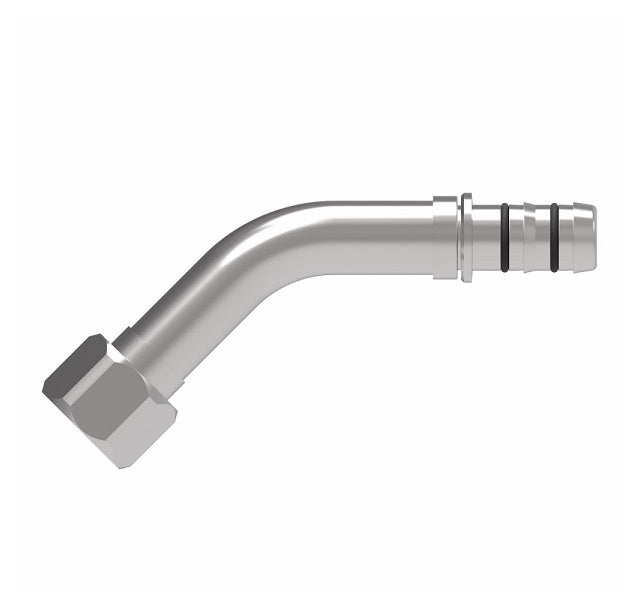

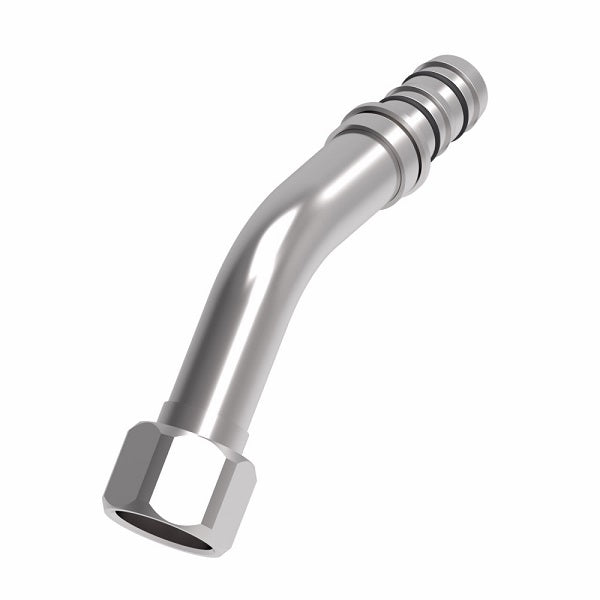

EJ3534-04-0808S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -08 Female JIC 37° Flare x -08 Hose Barb | Steel

EJ3534-04-0808S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -08 Female JIC 37° Flare x -08 Hose Barb | Steel

Name: EJ3534-04-0808S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -08 Female JIC 37° Flare x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: EJ3534-04-0808S Danfoss
Price: 125.62 USD
Availability: InStock

$125.62 - $125.62

$125.62

$125.62 - $125.62

$125.62

Danfoss A/C & Refrigeration
E-Z Clip System - Female JIC 37° Flare - 45° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: EJ3534-04-0808S Danfoss
Brand:	E-Z Clip
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	H Ref.	Ref.	Clip & Cage Kit (Required)
EJ3534-02-0606S	9/16-18	-06	3.31"	1.79"	0.74"	1.00"	FF14171
EJ3534-04-0808S	3/4-16	-08	4.04"	2.49"	1.10"	0.88"	FF14172
EJ3534-06-1212S	1-1/16-12	-12	4.30"	2.73"	1.33"	1.50"	FF14174
EJ3534-07-1616S	1-5/16-12	-16	5.46"	3.79"	1.92"	1.50"	FF14401
