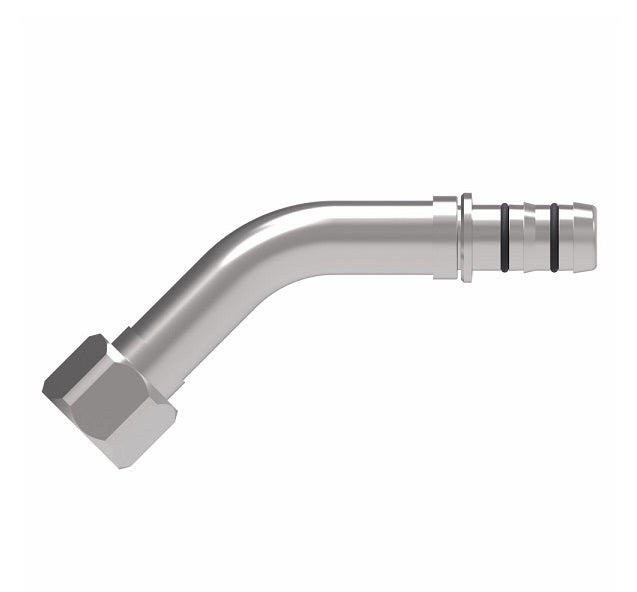

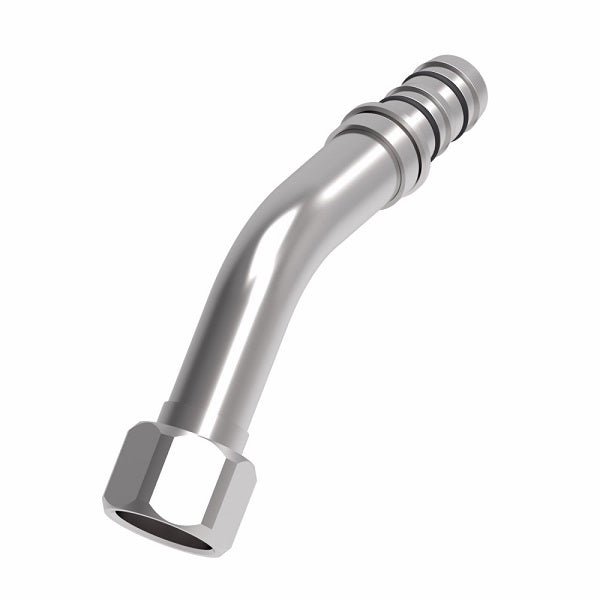

EJ3534-06-1212S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -12 Female JIC 37° Flare x -12 Hose Barb | Steel
EJ3534-06-1212S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -12 Female JIC 37° Flare x -12 Hose Barb | Steel
EJ3534-06-1212S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -12 Female JIC 37° Flare x -12 Hose Barb | Steel
EJ3534-06-1212S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -12 Female JIC 37° Flare x -12 Hose Barb | Steel

EJ3534-06-1212S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -12 Female JIC 37° Flare x -12 Hose Barb | Steel

$52.12 - $52.12
$52.12
$52.12 - $52.12
$52.12

Danfoss A/C & Refrigeration
E-Z Clip System - Female JIC 37° Flare - 45° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: EJ3534-06-1212S Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
EJ3534-02-0606S 9/16-18 -06 3.31" 1.79" 0.74" 1.00" FF14171
EJ3534-04-0808S 3/4-16 -08 4.04" 2.49" 1.10" 0.88" FF14172
EJ3534-06-1212S 1-1/16-12 -12 4.30" 2.73" 1.33" 1.50" FF14174
EJ3534-07-1616S 1-5/16-12 -16 5.46" 3.79" 1.92" 1.50" FF14401
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
