F-BSPX45-08-08 by Kurt Hydraulics | Female BSPP 60° Cone | 45° Elbow | Swivel | for 1/2" Hose ID

Name: F-BSPX45-08-08 by Kurt Hydraulics | Female BSPP 60° Cone | 45° Elbow | Swivel | for 1/2" Hose ID
Brand: Kurt Hydraulics
SKU: F-BSPX45-08-08 Kurt
Price: 16.44 USD
Availability: InStock

Save $2.06

$18.50

$18.50 - $18.50

$18.50

$16.44

$16.44 - $16.44

$16.44

by Kurt Hydraulics
F-BSPX45 - British Standard Pipe 60 deg. Cone 45 deg. Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-BSPX45-08-08 Kurt
Series:	BSPX45 Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Hose Barb, 1/2in Female BSPP
Special Properties:	Swivel

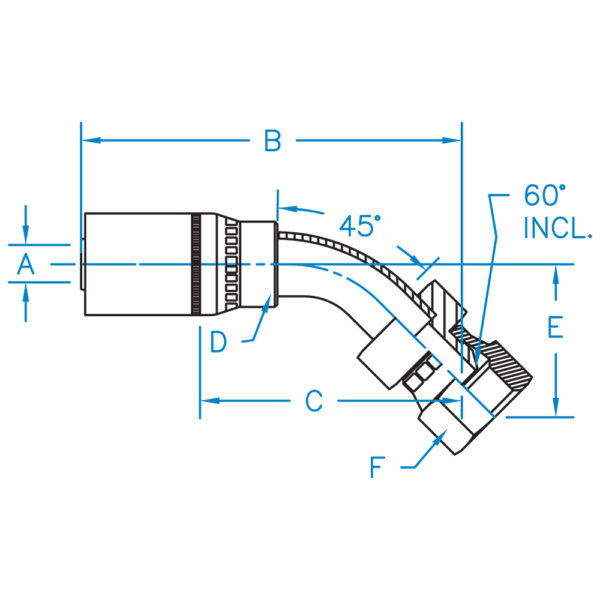

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
F-BSPX45-04-04	0.250	3.45	2.19	3/4	0.75	3/4	1/4"	1/4-19
F-BSPX45-04-06	0.250	3.165	2.105	5/8	0.750	3/4	1/4"	3/8-19
F-BSPX45-06-06	0.375	3.150	2.487	3/4	0.560	7/8	3/8"	3/8-19
F-BSPX45-06-08	0.375	N/A	N/A	N/A	N/A	N/A	3/8"	1/2-14
F-BSPX45-08-08	0.500	2.320	2.305	7/8	0.980	1.000	1/2"	1/2-14
F-BSPX45-10-10	0.625	4.223	2.343	1-1/8	1.370	1-1/8	5/8"	5/8-14
F-BSPX45-12-12	0.750	4.940	3.320	1-1/8	1.760	1-1/4	3/4"	3/4-14
F-BSPX45-16-16	1.000	5.03	3.29	1-3/8	1.33	1-1/2	1.000"	1-11

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
