F-DL06-10-16-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | Swivel With O-Ring | for 3/8" Hose ID

F-DL06-10-16-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | Swivel With O-Ring | for 3/8" Hose ID

Save $8.15 Save $8.15
$20.38
$20.38 - $20.38
$20.38
$12.23
$12.23 - $12.23
$12.23
by Kurt Hydraulics
F-DL-W - Din Light 24 deg. Seat Female Swivel With O-Ring
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DL06-10-16-W Kurt
Series: W Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, L16 Female DIN
Special Properties: Swivel

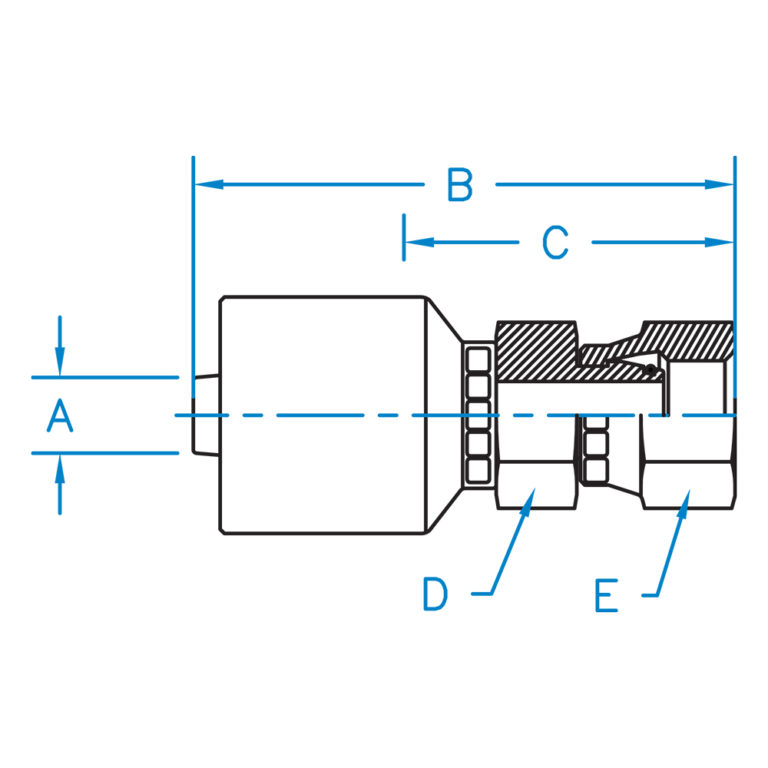

Part Number A B C D E Hose ID
(In)		 Thread
F-DL06-10-16-W 0.375 2.562 1.192 3/4 7/8 3/8" M16 X 1.5
F-DL06-12-18-W 0.375 2.600 1.230 3/4 15/16 3/8" M18 X 1.5
F-DL06-15-22-W 0.375 2.713 1.343 3/4 1-1/16 3/8" M22 X 1.5
F-DL08-15-22-W 0.500 2.800 1.460 7/8 1-1/16 1/2" M22 X 1.5
F-DL08-18-26-W 0.500 3.78 1.68 1-1/8 1-1/4 1/2" M26 X 1.5
F-DL10-18-26-W 0.625 3.630 1.530 1.000 1-1/4 5/8" M26 X 1.5
F-DL12-18-26-W 0.750 N/A N/A N/A 1-1/4 3/4" M26 X 1.5
F-DL12-22-30-W 0.750 3.574 1.695 1-3/16 1-7/16 3/4" M30 X 2.0
F-DL16-28-36-W 1.000 3.859 1.760 1-1/2 1-3/4 1.000" M36 X 2.0
F-DL20-35-45-W 1.250 4.219 1.815 1-11/16 2.000 1-1/4" M45 X 2.0


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
