F-DL06-15-22-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | Swivel With O-Ring | for 3/8" Hose ID

Name: F-DL06-15-22-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | Swivel With O-Ring | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: F-DL06-15-22-W Kurt
Price: 12.6 USD
Availability: InStock

Save $1.58

$14.18

$14.18 - $14.18

$14.18

$12.60

$12.60 - $12.60

$12.60

by Kurt Hydraulics
F-DL-W - Din Light 24 deg. Seat Female Swivel With O-Ring

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-DL06-15-22-W Kurt
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, L22 Female DIN
Special Properties:	Swivel

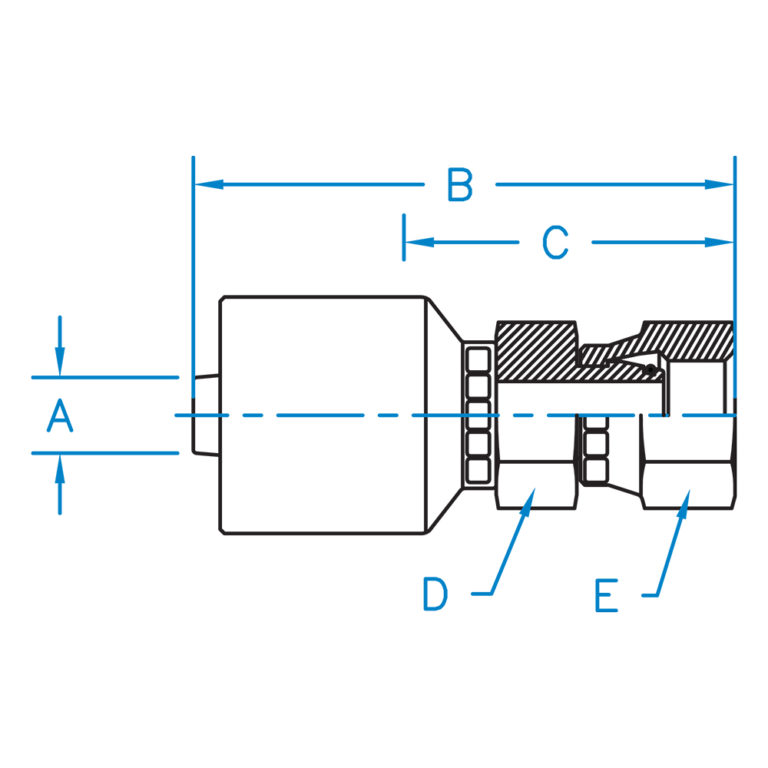

Part Number	A	B	C	D	E	Hose ID (In)	Thread
F-DL06-10-16-W	0.375	2.562	1.192	3/4	7/8	3/8"	M16 X 1.5
F-DL06-12-18-W	0.375	2.600	1.230	3/4	15/16	3/8"	M18 X 1.5
F-DL06-15-22-W	0.375	2.713	1.343	3/4	1-1/16	3/8"	M22 X 1.5
F-DL08-15-22-W	0.500	2.800	1.460	7/8	1-1/16	1/2"	M22 X 1.5
F-DL08-18-26-W	0.500	3.78	1.68	1-1/8	1-1/4	1/2"	M26 X 1.5
F-DL10-18-26-W	0.625	3.630	1.530	1.000	1-1/4	5/8"	M26 X 1.5
F-DL12-18-26-W	0.750	N/A	N/A	N/A	1-1/4	3/4"	M26 X 1.5
F-DL12-22-30-W	0.750	3.574	1.695	1-3/16	1-7/16	3/4"	M30 X 2.0
F-DL16-28-36-W	1.000	3.859	1.760	1-1/2	1-3/4	1.000"	M36 X 2.0
F-DL20-35-45-W	1.250	4.219	1.815	1-11/16	2.000	1-1/4"	M45 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
