F-DL9006-1218-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M18X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | 90° Elbow | Carbon Steel

F-DL9006-1218-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M18X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | 90° Elbow | Carbon Steel

Save $31.81 Save $31.81
$79.53
$79.53 - $79.53
$79.53
$47.72
$47.72 - $47.72
$47.72

Kurt Hydraulics
Din Light 24º Seat 90° Bent Tube Female Swivel With O-Ring
Specifications for Variant SKU: F-DL9006-1218-K2 Kurt
Series: K2 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, L12 Female DIN
Material(s): Carbon Steel

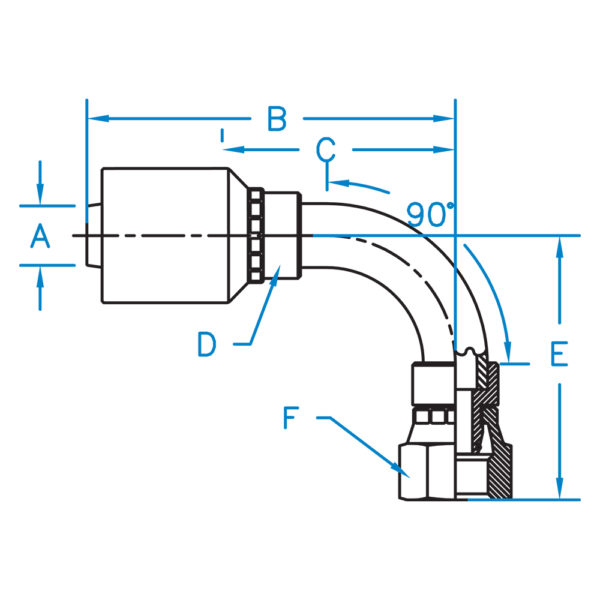

Part Number Hose I.D. (in.) B C D E F Thread
F-DL9004-0814-K2 1/4" 2.70" 1.64" 5/8" 1.54" 9/16" M14 X 1.5
F-DL9004-1016-K2 1/4" 2.84" 1.78" 5/8" 1.63" 3/4" M16 X 1.5
F-DL9006-1016-K2 3/8" 3.17" 1.80" 11/16" 1.63" 3/4" M16 X 1.5
F-DL9006-1218-K2 3/8" 2.98" 1.60" 3/4" 1.86" 7/8" M18 X 1.5
F-DL9008-1522-K2 1/2" 3.49" 2.15" 7/8" 2.26" 1-1/16" M22 X 1.5
F-DL9008-1826-K2 1/2" 3.49" 2.15" 7/8" 2.37" 1-1/4" M26 X 1.5
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
