F-DL9008-1522-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x M22X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | 90° Elbow | Carbon Steel

Name: F-DL9008-1522-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x M22X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | 90° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: F-DL9008-1522-K2 Kurt
Price: 55.2 USD
Availability: InStock

Save $36.80

$92.00

$92.00 - $92.00

$92.00

$55.20

$55.20 - $55.20

$55.20

Kurt Hydraulics
Din Light 24º Seat 90° Bent Tube Female Swivel With O-Ring

Specifications for Variant SKU: F-DL9008-1522-K2 Kurt
Series:	K2 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Hose Barb, L15 Female DIN
Material(s):	Carbon Steel

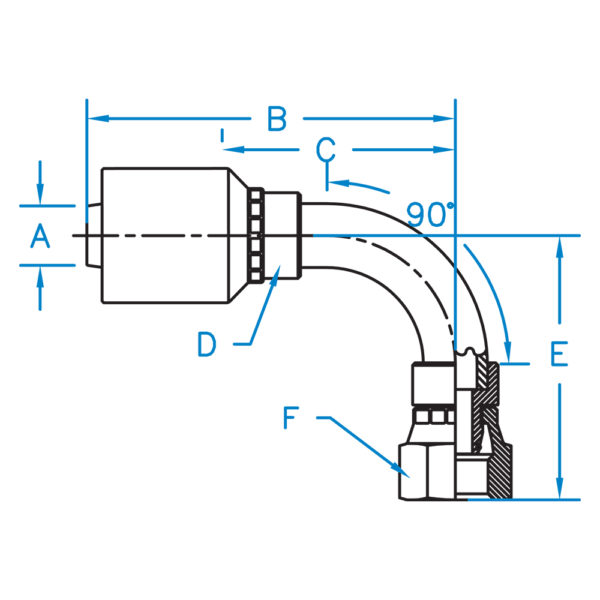

Part Number	Hose I.D. (in.)	B	C	D	E	F	Thread
F-DL9004-0814-K2	1/4"	2.70"	1.64"	5/8"	1.54"	9/16"	M14 X 1.5
F-DL9004-1016-K2	1/4"	2.84"	1.78"	5/8"	1.63"	3/4"	M16 X 1.5
F-DL9006-1016-K2	3/8"	3.17"	1.80"	11/16"	1.63"	3/4"	M16 X 1.5
F-DL9006-1218-K2	3/8"	2.98"	1.60"	3/4"	1.86"	7/8"	M18 X 1.5
F-DL9008-1522-K2	1/2"	3.49"	2.15"	7/8"	2.26"	1-1/16"	M22 X 1.5
F-DL9008-1826-K2	1/2"	3.49"	2.15"	7/8"	2.37"	1-1/4"	M26 X 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
