F-KOMX-06-18-W by Kurt Hydraulics | Jump Size | Female Komatsu JIS 30 Degree | Swivel | for 3/8" Hose ID

Name: F-KOMX-06-18-W by Kurt Hydraulics | Jump Size | Female Komatsu JIS 30 Degree | Swivel | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: F-KOMX-06-18-W Kurt
Price: 8.11 USD
Availability: InStock

Save $5.41

$13.52

$13.52 - $13.52

$13.52

$8.11

$8.11 - $8.11

$8.11

by Kurt Hydraulics
F-KOMX-W - Komatsu JIS 30 deg. Seat Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: F-KOMX-06-18-W Kurt
Series:	W Series
Shape (Orientation):	Straight
Special Properties:	Swivel, Jump Size

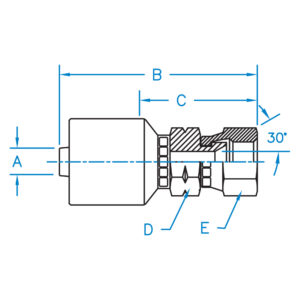

Part Number	A	B	C	D	E	Hose ID (In)	Thread
F-KOMX-06-14-W	0.375	2.484	1.114	11/16	3/4	3/8"	M14 X 1.5
F-KOMX-06-18-W	0.375	2.515	1.145	11/16	15/16	3/8"	M18 X 1.5
F-KOMX-08-22-W	0.500	2.625	1.285	7/8	1-1/16	1/2"	M22 X 1.5
F-KOMX-08-24-W	0.500	2.615	1.278	7/8	1-1/4	1/2"	M24 X 1.5
F-KOMX-10-24-W	0.625	3.445	1.345	7/8	1-1/4	5/8"	M24 X 1.5
F-KOMX-12-30-W	0.750	3.612	1.742	1-1/8	1-1/2	3/4"	M30 X 1.5
F-KOMX-16-33-W	1.000	4.097	1.972	1-3/8	1-5/8	1.000"	M33 X 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
