F-KOMX-08-24-W by Kurt Hydraulics | Jump Size | Female Komatsu JIS 30 Degree | Swivel | for 1/2" Hose ID

Save $1.48 Save $1.48
Original price $13.35
Original price $13.35 - Original price $13.35
Original price $13.35
Current price $11.87
$11.87 - $11.87
Current price $11.87
by Kurt Hydraulics
F-KOMX-W - Komatsu JIS 30 deg. Seat Female Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-KOMX-08-24-W Kurt
Shape (Orientation): Straight
Special Properties: Swivel, Jump Size

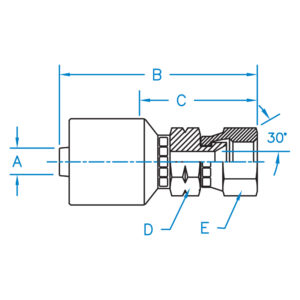

Part Number A B C D E Hose ID
(In)
Thread
F-KOMX-06-14-W 0.375 2.484 1.114 11/16 3/4 3/8" M14 X 1.5
F-KOMX-06-18-W 0.375 2.515 1.145 11/16 15/16 3/8" M18 X 1.5
F-KOMX-08-22-W 0.500 2.625 1.285 7/8 1-1/16 1/2" M22 X 1.5
F-KOMX-08-24-W 0.500 2.615 1.278 7/8 1-1/4 1/2" M24 X 1.5
F-KOMX-10-24-W 0.625 3.445 1.345 7/8 1-1/4 5/8" M24 X 1.5
F-KOMX-12-30-W 0.750 3.612 1.742 1-1/8 1-1/2 3/4" M30 X 1.5
F-KOMX-16-33-W 1.000 4.097 1.972 1-3/8 1-5/8 1.000" M33 X 1.5
