F-KOMX90-0614-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M14X1.5 Female Komatsu JIS 30° Seat Swivel | 90° Elbow | Carbon Steel

F-KOMX90-0614-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M14X1.5 Female Komatsu JIS 30° Seat Swivel | 90° Elbow | Carbon Steel

Save $54.85 Save $54.85
$137.12
$137.12 - $137.12
$137.12
$82.27
$82.27 - $82.27
$82.27

Kurt Hydraulics
Komatsu JIS 30° Seat 90° Bent Tube Female Swivel
Specifications for Variant SKU: F-KOMX90-0614-K2 Kurt
Series: K2 Series
Shape (Orientation): 90 Degree
Material(s): Carbon Steel
Special Properties: Swivel

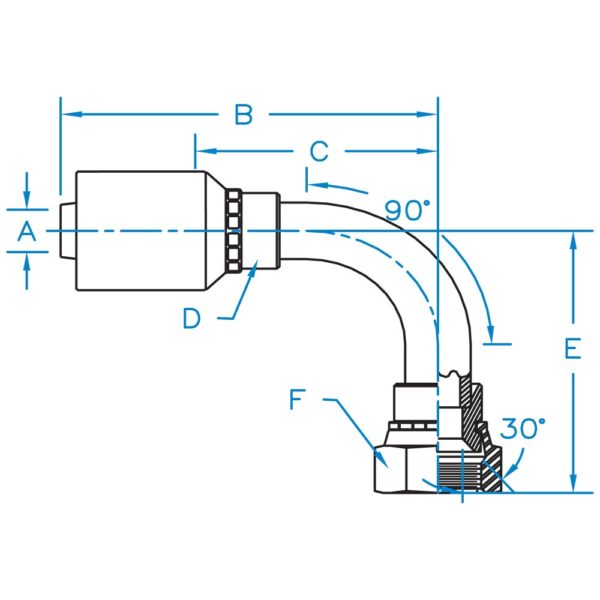

Part Number Hose I.D. (in.) B C D E F Thread
F-KOMX90-0414-K2 1/4" 2.84" 1.78" 5/8" 1.48" 11/16" M14 x 1.5
F-KOMX90-0614-K2 3/8" 3.17" 1.80" 11/16" 1.48" 11/16" M14 x 1.5
F-KOMX90-0618-K2 3/8" 3.17" 1.80" 11/16" 1.52" 7/8" M18 x 1.5
F-KOMX90-0822-K2 1/2" 3.49" 2.15" 7/8" 1.72" 1-1/16" M22 x 1.5
F-KOMX90-0824-K2 1/2" 2.99" 1.65" 7/8" 2.25" 1-1/4" M24 x 1.5
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
