F-KOMX90-0618-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M18X1.5 Female Komatsu JIS 30° Seat Swivel | 90° Elbow | Carbon Steel

Name: F-KOMX90-0618-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M18X1.5 Female Komatsu JIS 30° Seat Swivel | 90° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: F-KOMX90-0618-K2 Kurt
Price: 87.15 USD
Availability: InStock

Save $58.10

$145.25

$145.25 - $145.25

$145.25

$87.15

$87.15 - $87.15

$87.15

Kurt Hydraulics
Komatsu JIS 30° Seat 90° Bent Tube Female Swivel

Specifications for Variant SKU: F-KOMX90-0618-K2 Kurt
Series:	K2 Series
Shape (Orientation):	90 Degree
Material(s):	Carbon Steel
Special Properties:	Swivel

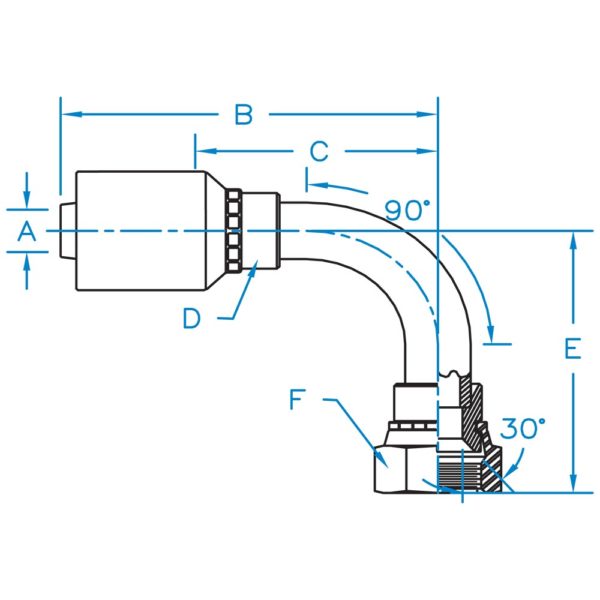

Part Number	Hose I.D. (in.)	B	C	D	E	F	Thread
F-KOMX90-0414-K2	1/4"	2.84"	1.78"	5/8"	1.48"	11/16"	M14 x 1.5
F-KOMX90-0614-K2	3/8"	3.17"	1.80"	11/16"	1.48"	11/16"	M14 x 1.5
F-KOMX90-0618-K2	3/8"	3.17"	1.80"	11/16"	1.52"	7/8"	M18 x 1.5
F-KOMX90-0822-K2	1/2"	3.49"	2.15"	7/8"	1.72"	1-1/16"	M22 x 1.5
F-KOMX90-0824-K2	1/2"	2.99"	1.65"	7/8"	2.25"	1-1/4"	M24 x 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
