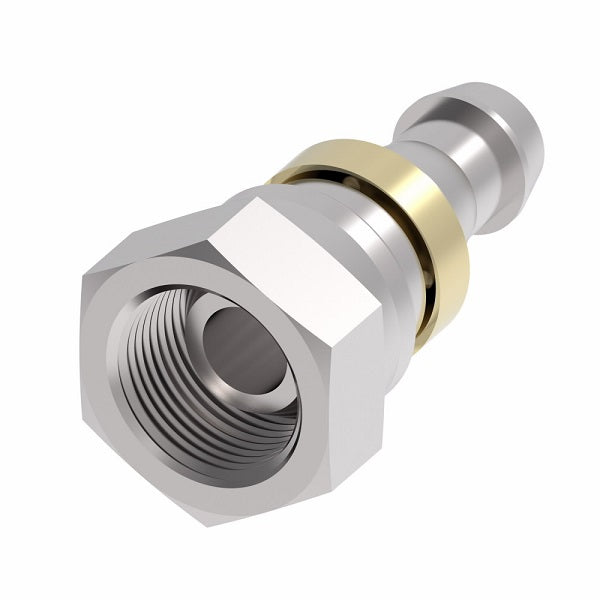

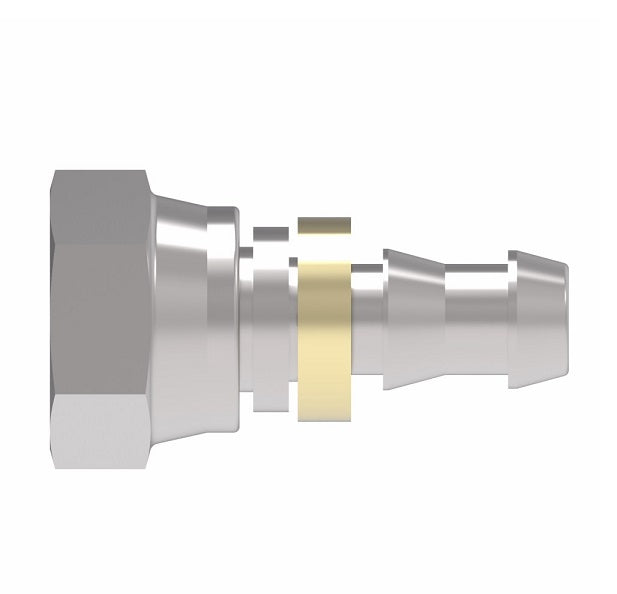

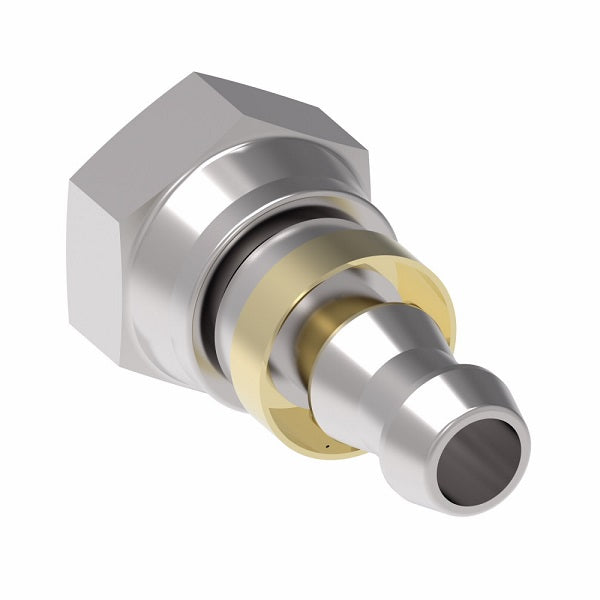

FC5853-0404S Aeroquip by Danfoss | Female NPSM Swivel Socketless Reusable Hose Fitting | FC Series | -04 Female NPSM Swivel x -04 Push-On Hose Barb | Steel

FC5853-0404S Aeroquip by Danfoss | Female NPSM Swivel Socketless Reusable Hose Fitting | FC Series | -04 Female NPSM Swivel x -04 Push-On Hose Barb | Steel

Name: FC5853-0404S Aeroquip by Danfoss | Female NPSM Swivel Socketless Reusable Hose Fitting | FC Series | -04 Female NPSM Swivel x -04 Push-On Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FC5853-0404S Danfoss
Price: 58.18 USD
Availability: InStock

$58.18 - $58.18

$58.18

$58.18 - $58.18

$58.18

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - FC Series - Female NPSM Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5853-0404S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPSM, 1/4in Push-On Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2556 Series \| 2565 Series \| 2575 Series \| FC332 Series \| FC647 Series \| H201 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5853-0404S	-04	1/4-18	1.64"	0.89"	0.17"
FC5853-0606S	-06	3/8-18	1.75"	0.89"	0.30"
FC5853-0808S	-08	1/2-14	2.03"	1.01"	0.39"
FC5853-1212S	-12	3/4-14	2.63"	1.11"	0.61"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
