FC5853-0606S Aeroquip by Danfoss | Female NPSM Swivel Socketless Reusable Hose Fitting | FC Series | -06 Female NPSM Swivel x -06 Push-On Hose Barb | Steel

FC5853-0606S Aeroquip by Danfoss | Female NPSM Swivel Socketless Reusable Hose Fitting | FC Series | -06 Female NPSM Swivel x -06 Push-On Hose Barb | Steel

Name: FC5853-0606S Aeroquip by Danfoss | Female NPSM Swivel Socketless Reusable Hose Fitting | FC Series | -06 Female NPSM Swivel x -06 Push-On Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FC5853-0606S Danfoss
Price: 51.56 USD
Availability: InStock

$51.56 - $51.56

$51.56

$51.56 - $51.56

$51.56

Aeroquip® by Danfoss

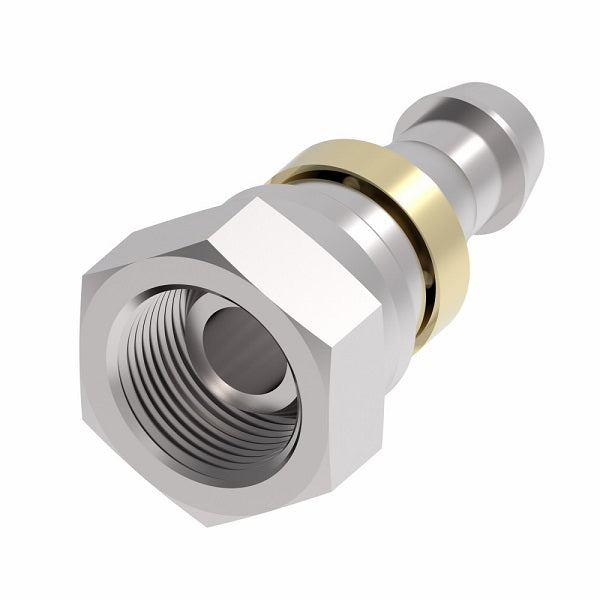

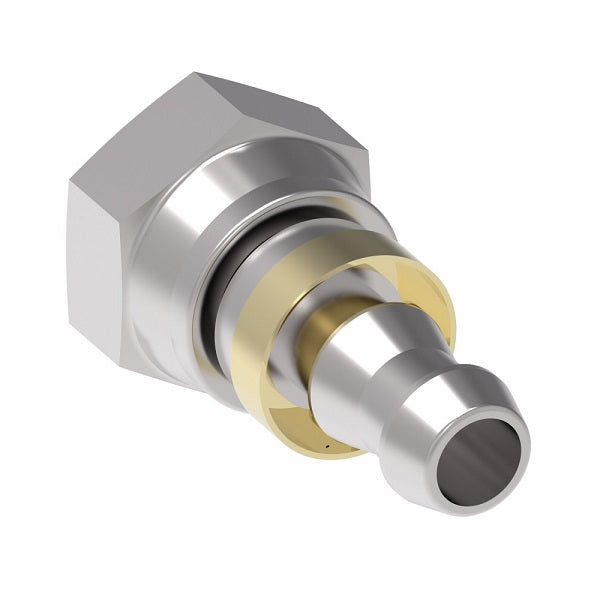

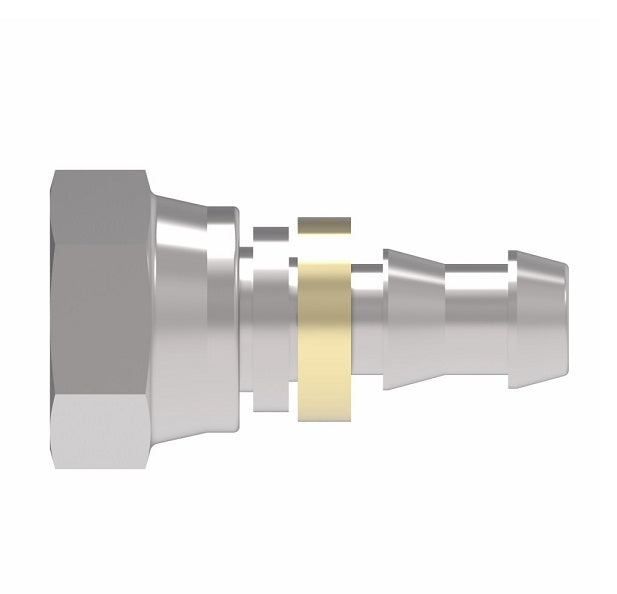

Socketless (Push-On Hose Barb) Reusable Hose Fitting - FC Series - Female NPSM Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5853-0606S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female NPSM, 3/8in Push-On Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2556 Series \| 2565 Series \| 2575 Series \| FC332 Series \| FC647 Series \| H201 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5853-0404S	-04	1/4-18	1.64"	0.89"	0.17"
FC5853-0606S	-06	3/8-18	1.75"	0.89"	0.30"
FC5853-0808S	-08	1/2-14	2.03"	1.01"	0.39"
FC5853-1212S	-12	3/4-14	2.63"	1.11"	0.61"
