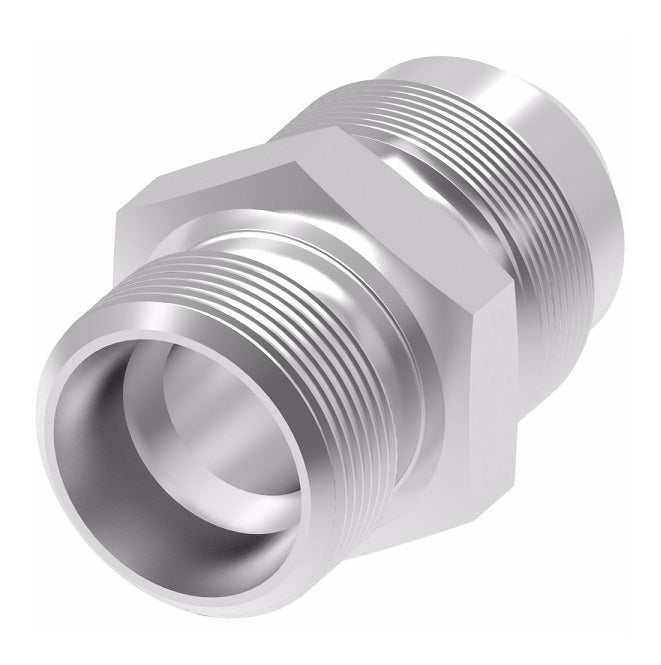

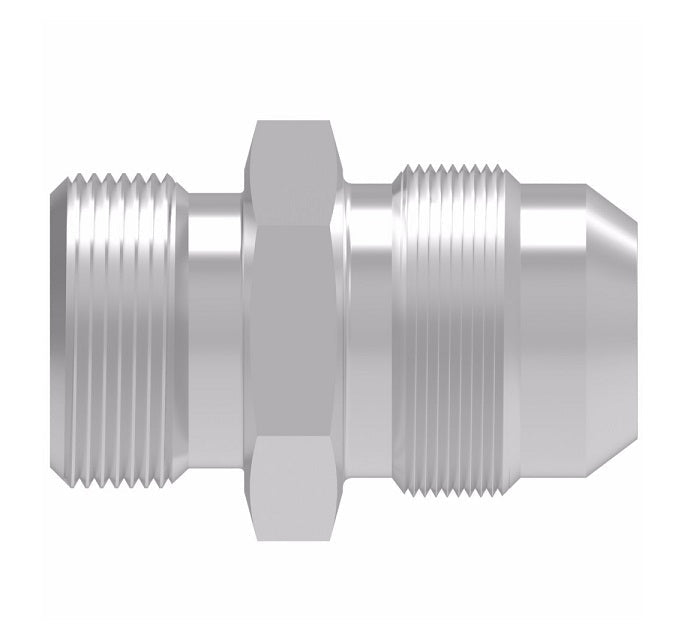

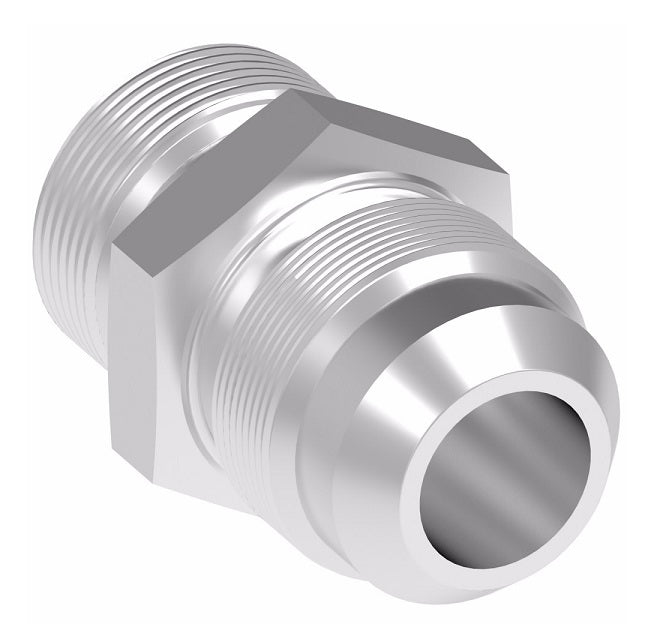

FF1315-0404S Aeroquip by Danfoss | Male SAE Flareless/37° JIC Flare Adapter | -04 Male SAE Flareless x -04 Male 37° JIC Flare | Steel

Name: FF1315-0404S Aeroquip by Danfoss | Male SAE Flareless/37° JIC Flare Adapter | -04 Male SAE Flareless x -04 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: FF1315-0404S Danfoss
Price: 46.21 USD
Availability: InStock

$46.21 - $46.21

$46.21

$46.21 - $46.21

$46.21

Aeroquip® by Danfoss
Male SAE Flareless/37° JIC Flare Adapter
Male SAE Flareless x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF1315-0404S Danfoss
Shape (Orientation):	Straight
Material(s):	Steel


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
FF1315-0404S	0.25"	7/16-20	7/16-20	1.22"	0.50"
FF1315-0604S	0.38"	9/16-18	7/16-20	1.27"	0.62"
FF1315-0606S	0.38"	9/16-18	9/16-18	1.28"	0.62"
FF1315-0806S	0.50"	3/4-16	9/16-18	1.37"	0.81"
FF1315-0808S	0.50"	3/4-16	3/4-16	1.47"	0.81"
FF1315-1008S	0.63"	7/8-14	3/4-16	1.59"	0.94"
FF1315-1010S	0.63"	7/8-14	7/8-14	1.69"	0.94"
FF1315-1212S	0.75"	1-1/16-12	1-1/16-12	1.93"	1.12"
FF1315-1616S	1.00"	1-5/16-12	1-5/16-12	1.98"	1.38"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
