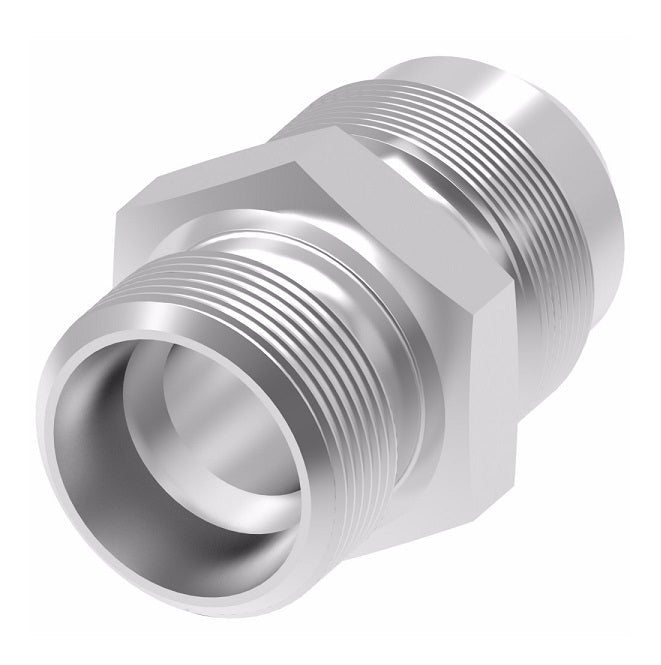

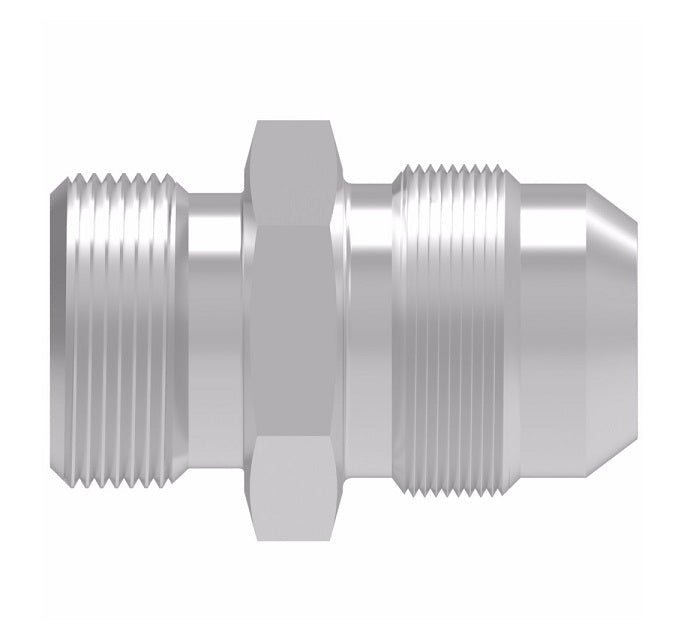

FF1315-1010S Aeroquip by Danfoss | Male SAE Flareless/37° JIC Flare Adapter | -10 Male SAE Flareless x -10 Male 37° JIC Flare | Steel

FF1315-1010S Aeroquip by Danfoss | Male SAE Flareless/37° JIC Flare Adapter | -10 Male SAE Flareless x -10 Male 37° JIC Flare | Steel

$37.51 - $37.51
$37.51
$37.51 - $37.51
$37.51

Aeroquip® by Danfoss
Male SAE Flareless/37° JIC Flare Adapter
Male SAE Flareless x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1315-1010S Danfoss
Shape (Orientation): Straight
Material(s): Steel
Part Number
Steel		 Tube O.D. Thread T1 Thread T2 A B
FF1315-0404S 0.25" 7/16-20 7/16-20 1.22" 0.50"
FF1315-0604S 0.38" 9/16-18 7/16-20 1.27" 0.62"
FF1315-0606S 0.38" 9/16-18 9/16-18 1.28" 0.62"
FF1315-0806S 0.50" 3/4-16 9/16-18 1.37" 0.81"
FF1315-0808S 0.50" 3/4-16 3/4-16 1.47" 0.81"
FF1315-1008S 0.63" 7/8-14 3/4-16 1.59" 0.94"
FF1315-1010S 0.63" 7/8-14 7/8-14 1.69" 0.94"
FF1315-1212S 0.75" 1-1/16-12 1-1/16-12 1.93" 1.12"
FF1315-1616S 1.00" 1-5/16-12 1-5/16-12 1.98" 1.38"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
