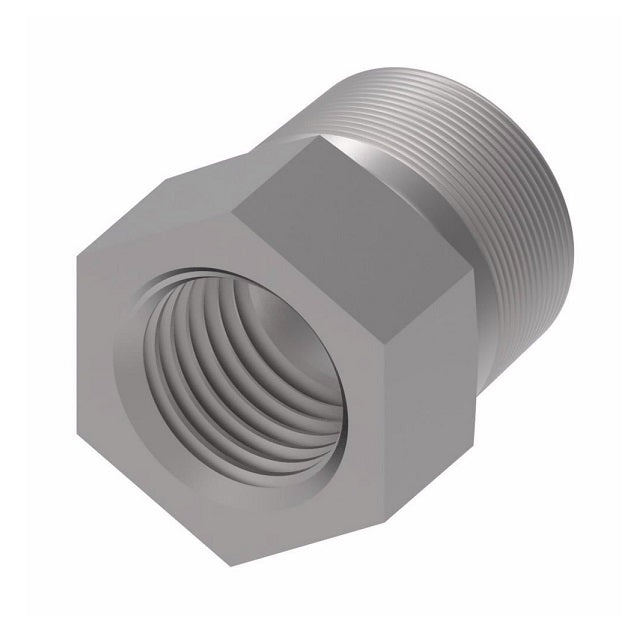

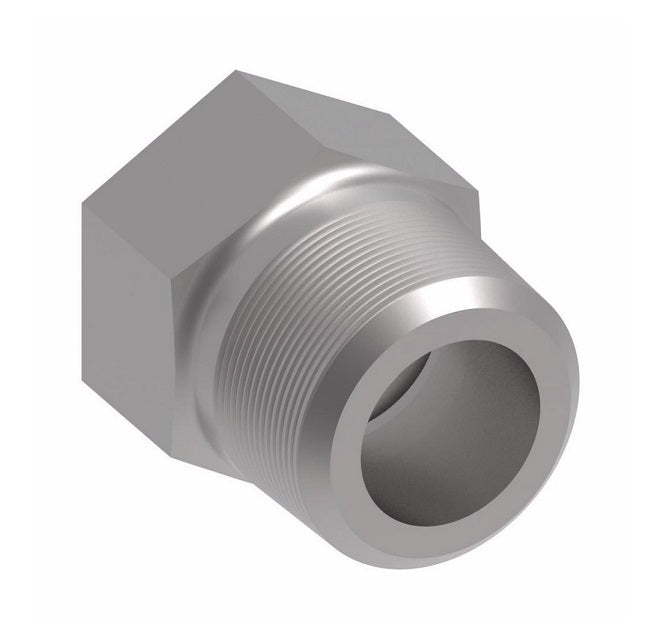

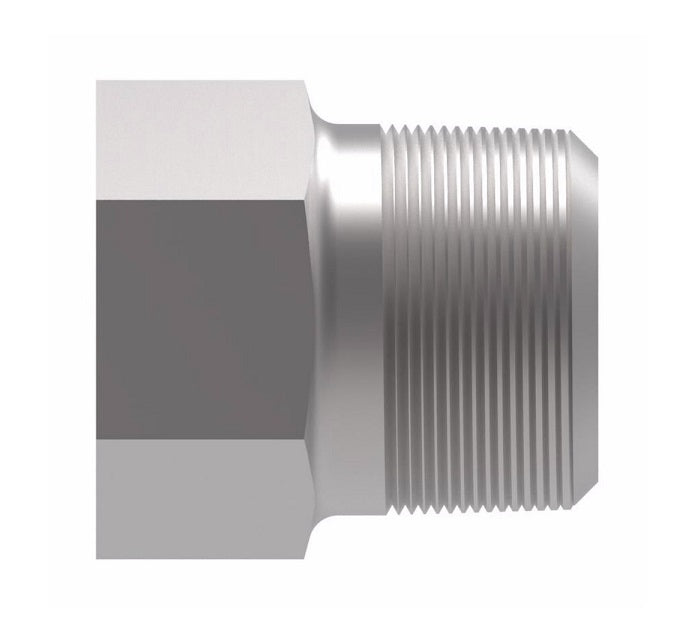

FF1851T1620S Aeroquip by Danfoss | ORS/Braze Adapter | -16 Male O-Ring Face Seal x -20 Braze End | Steel

$32.83

Aeroquip® by Danfoss
ORS/Braze Adapter
Male O-Ring Face Seal x Braze End
Straight

(Formerly Eaton Aeroquip)

The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FF1851T1620S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Male O-Ring Face Seal, 1-1/4in Braze End
Material(s): Steel
Specifications:
  • Ref. SAE 520104
Construction:
  • Buna-N O-Rings are standard.
Part Number Tube OD Thread T A B C D Hex 1

FF1851T0404S 0.25" 9/16-18 0.78" 0.25" 0.25" 0.62"
FF1851T0606S 0.38" 11/16-16 0.83" 0.25" 0.38" 0.75"
FF1851T0608S 0.38" 11/16-16 0.95" 0.38" 0.50" 0.75"
FF1851T0808S - - - - - -
FF1851T1010S 0.63" 1-14 1.12" 0.38" 0.62" 1.06"
FF1851T1212S 0.75" 1-3/16-12 1.21" 0.38" 0.75" 1.25"
FF1851T1216S 0.75" 1-3/16-12 1.45" 0.50" 1.00" 1.50"
FF1851T1612S 1.00" 1-7/16-12 1.21" 0.38" 0.75" 1.50"
FF1851T1616S 1.00" 1-7/16-12 1.47" 0.50" 1.00" 1.50"
FF1851T1620S 1.00" 1-7/16-12 1.47" 0.50" 1.25" 1.75"
FF1851T2020S 1.25" 1-11/16-12 1.47" 0.50" 1.25" 1.75"
FF1851T2024S 1.25" 1-11/16-12 1.47" 0.50" 1.50" 2.12"
FF1851T2424S 1.50" 2-12 1.47" 0.50" 1.50" 2.12"

*Danfoss braze counterbores are dimensioned for sized or emeryed tubing. If tubing is used as received, contact Support for appropriate part number.
