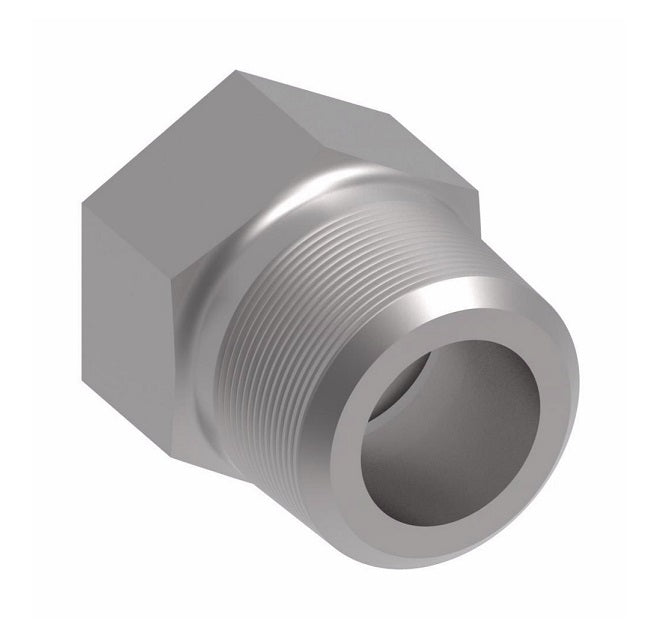

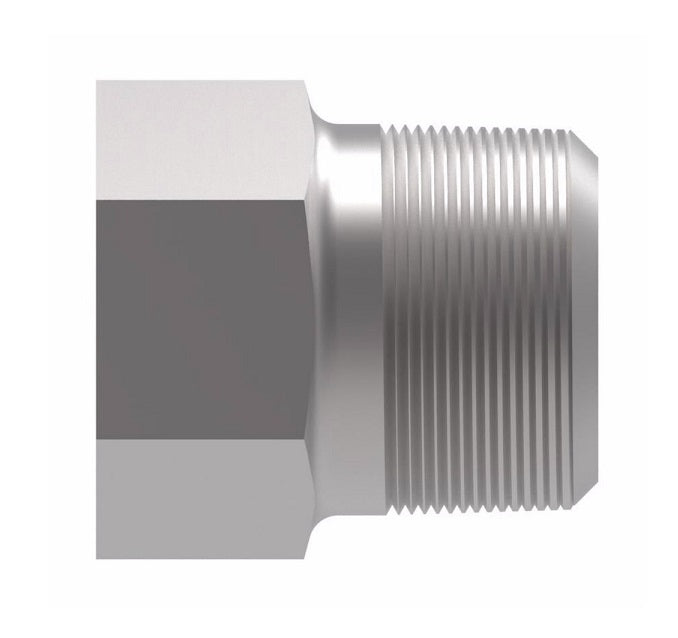

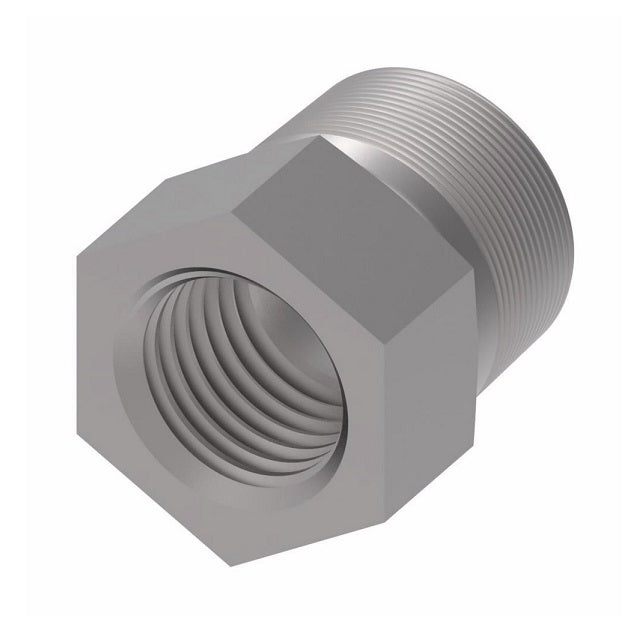

FF1851T2424S Aeroquip by Danfoss | ORS/Braze Adapter | -24 Male O-Ring Face Seal x -24 Braze End | Steel

FF1851T2424S Aeroquip by Danfoss | ORS/Braze Adapter | -24 Male O-Ring Face Seal x -24 Braze End | Steel

$69.70 - $69.70
$69.70
$69.70 - $69.70
$69.70

Aeroquip® by Danfoss
ORS/Braze Adapter
Male O-Ring Face Seal x Braze End
Straight

(Formerly Eaton Aeroquip)

The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.
Specifications for Variant SKU: FF1851T2424S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male O-Ring Face Seal, 1-1/2in Braze End
Material(s): Steel
Specifications:
  • Ref. SAE 520104
Construction:
  • Buna-N O-Rings are standard.
Part Number Tube OD Thread T A B C D Hex 1
FF1851T0404S 0.25" 9/16-18 0.78" 0.25" 0.25" 0.62"
FF1851T0606S 0.38" 11/16-16 0.83" 0.25" 0.38" 0.75"
FF1851T0608S 0.38" 11/16-16 0.95" 0.38" 0.50" 0.75"
FF1851T0808S - - - - - -
FF1851T1010S 0.63" 1-14 1.12" 0.38" 0.62" 1.06"
FF1851T1212S 0.75" 1-3/16-12 1.21" 0.38" 0.75" 1.25"
FF1851T1216S 0.75" 1-3/16-12 1.45" 0.50" 1.00" 1.50"
FF1851T1612S 1.00" 1-7/16-12 1.21" 0.38" 0.75" 1.50"
FF1851T1616S 1.00" 1-7/16-12 1.47" 0.50" 1.00" 1.50"
FF1851T1620S 1.00" 1-7/16-12 1.47" 0.50" 1.25" 1.75"
FF1851T2020S 1.25" 1-11/16-12 1.47" 0.50" 1.25" 1.75"
FF1851T2424S 1.50" 2-12 1.47" 0.50" 1.50" 2.12"

*Danfoss braze counterbores are dimensioned for sized or emeryed tubing. If tubing is used as received, contact Support for appropriate part number.
