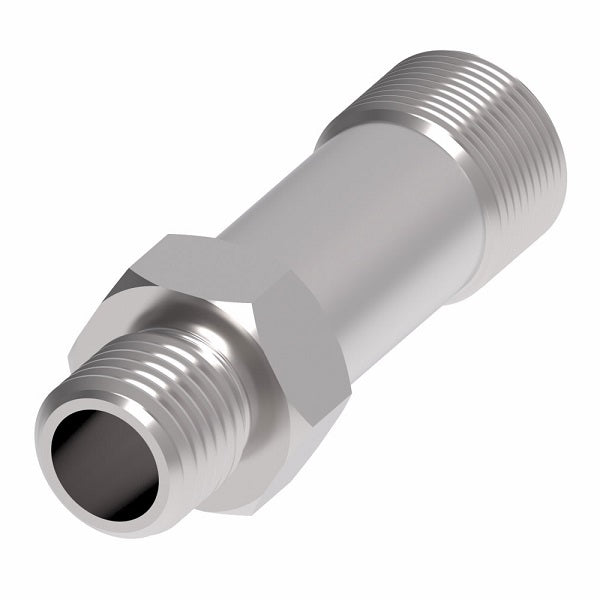

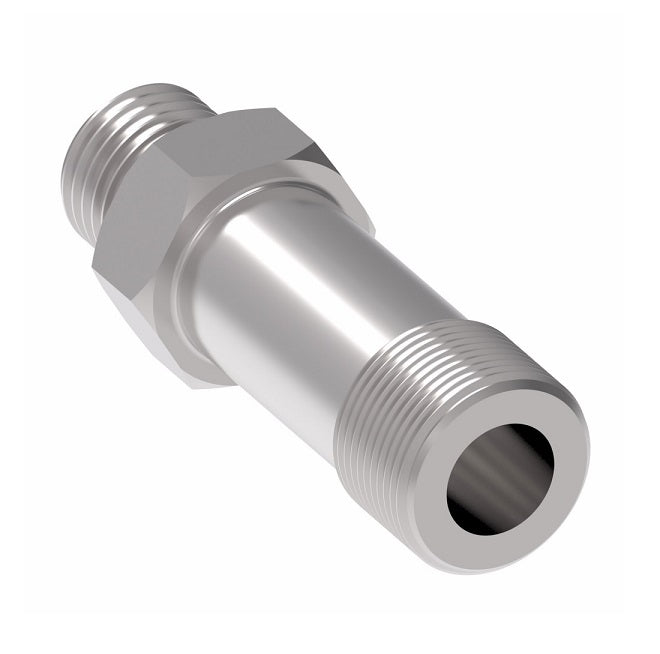

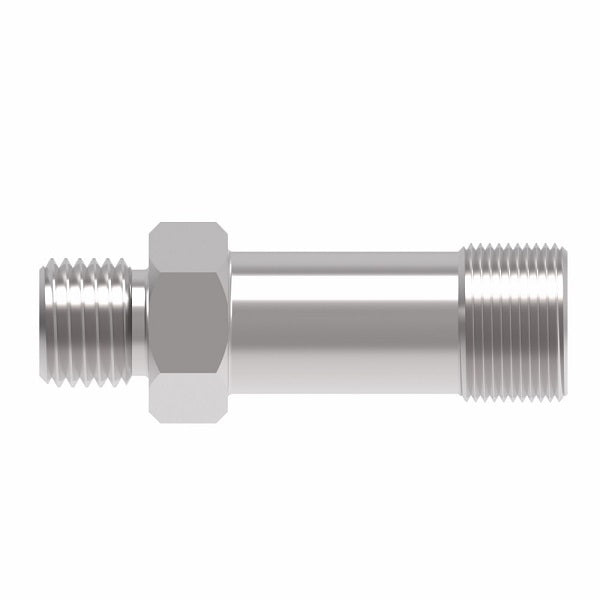

FF1854T0808S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -08 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel

FF1854T0808S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -08 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel

Name: FF1854T0808S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -08 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF1854T0808S Danfoss
Price: 32.03 USD
Availability: InStock

$32.03 - $32.03

$32.03

$32.03 - $32.03

$32.03

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss Long Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF1854T0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male O-Ring Face Seal, 1/2in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 520122
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	C	Hex 1
FF1854T0404S	0.25"	9/16-18	7/16-20	2.07"	0.43"	0.62"
FF1854T0606S	0.38"	11/16-16	9/16-18	2.27"	0.47"	0.75"
FF1854T0808S	0.50"	13/16-16	3/4-16	2.67"	0.55"	0.88"
FF1854T1010S	0.63"	1-14	7/8-14	3.13"	0.63"	1.06"
FF1854T1212S	0.75"	1-3/16-12	1-1/16-12	3.75"	0.73"	1.25"
FF1854T1616S	1.00"	1-7/16-12	1-5/16-12	4.13"	0.73"	1.50"
FF1854T2424S	1.50"	2-12	1-7/8-12	5.26"	0.73"	2.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
