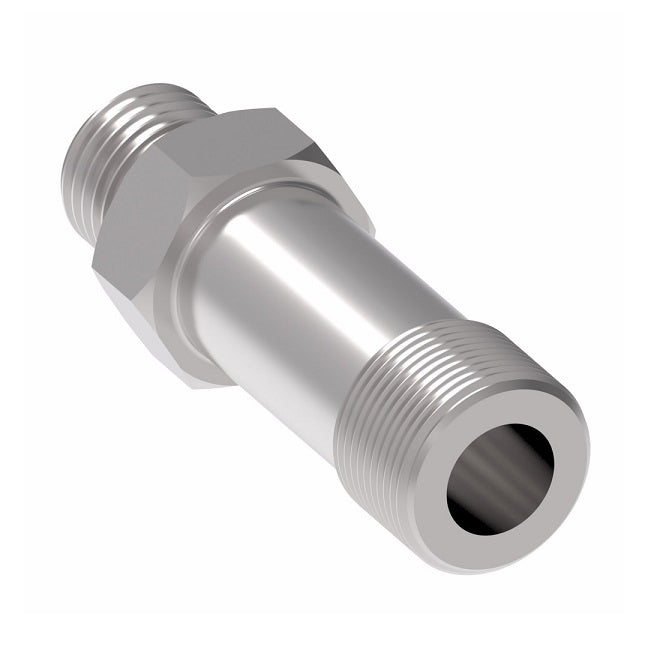

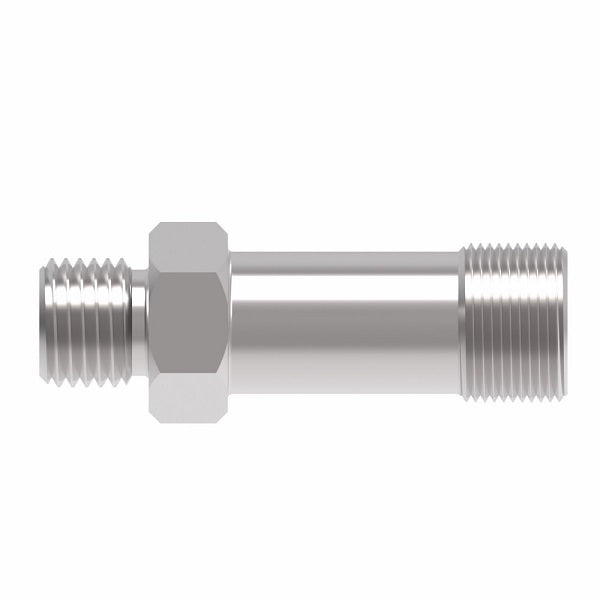

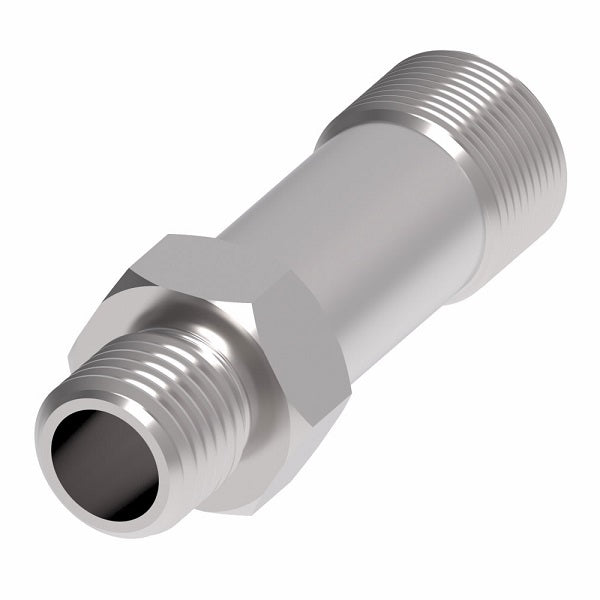

FF1854T2424S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -24 Male O-Ring Face Seal x -24 Male SAE O-Ring Boss | Steel
FF1854T2424S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -24 Male O-Ring Face Seal x -24 Male SAE O-Ring Boss | Steel
FF1854T2424S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -24 Male O-Ring Face Seal x -24 Male SAE O-Ring Boss | Steel
FF1854T2424S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -24 Male O-Ring Face Seal x -24 Male SAE O-Ring Boss | Steel

FF1854T2424S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -24 Male O-Ring Face Seal x -24 Male SAE O-Ring Boss | Steel

$99.72 - $99.72
$99.72
$99.72 - $99.72
$99.72

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss Long Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1854T2424S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male O-Ring Face Seal, 1-1/2in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520122
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A C Hex 1
FF1854T0404S 0.25" 9/16-18 7/16-20 2.07" 0.43" 0.62"
FF1854T0606S 0.38" 11/16-16 9/16-18 2.27" 0.47" 0.75"
FF1854T0808S 0.50" 13/16-16 3/4-16 2.67" 0.55" 0.88"
FF1854T1010S 0.63" 1-14 7/8-14 3.13" 0.63" 1.06"
FF1854T1212S 0.75" 1-3/16-12 1-1/16-12 3.75" 0.73" 1.25"
FF1854T1616S 1.00" 1-7/16-12 1-5/16-12 4.13" 0.73" 1.50"
FF1854T2424S 1.50" 2-12 1-7/8-12 5.26" 0.73" 2.12"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
