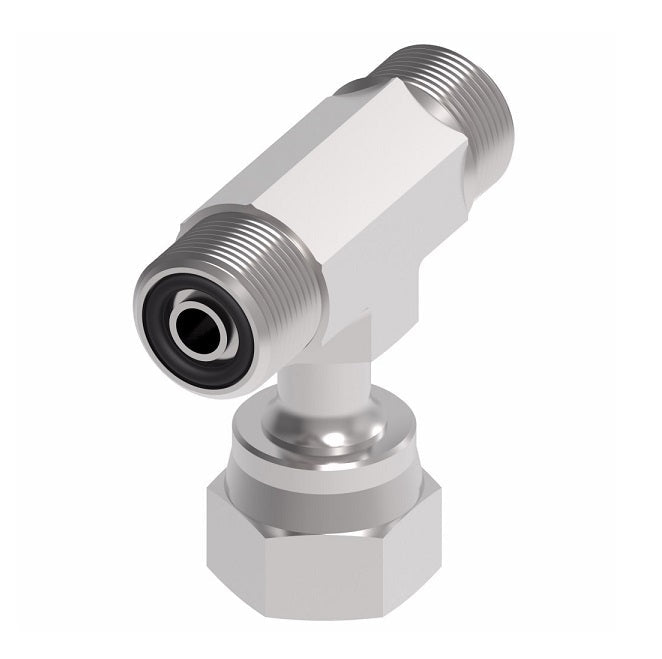

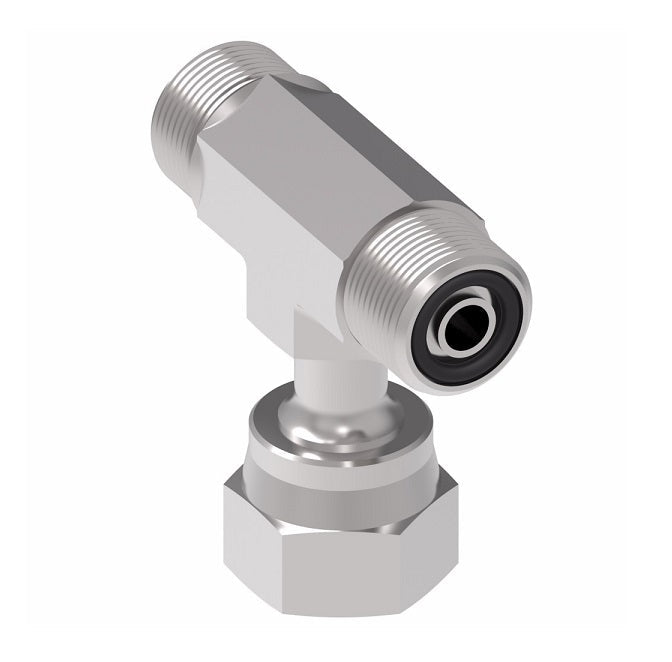

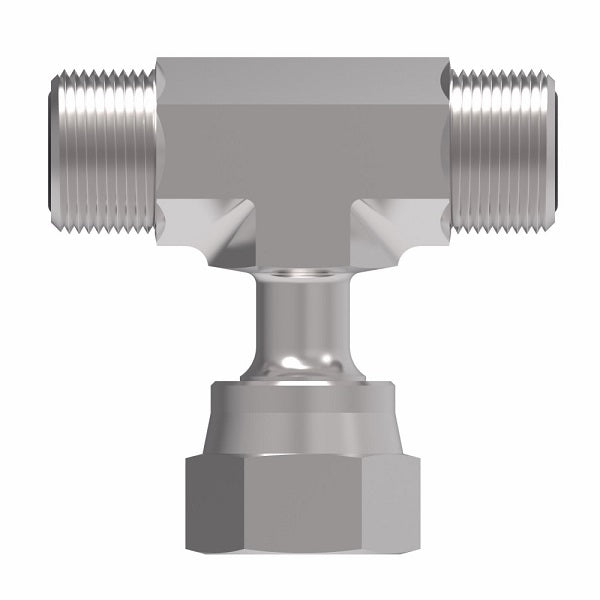

FF1857T0606S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal | Steel

FF1857T0606S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal | Steel

Name: FF1857T0606S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF1857T0606S Danfoss
Price: 29.4 USD
Availability: InStock

$29.40 - $29.40

$29.40

$29.40 - $29.40

$29.40

Aeroquip® by Danfoss
ORS Male/ORS Male/ORS Female Branch Tee Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Female O-Ring Face Seal

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF1857T0606S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Face Seal, 3/8in Female O-Ring Face Seal
Material(s):	Steel

Specifications:
Ref. SAE 520433
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF1857T0404S	0.25"	9/16-18	9/16-18	0.85"	1.04"
FF1857T0606S	0.38"	11/16-16	11/16-16	0.98"	1.15"
FF1857T0808S	0.50"	13/16-16	13/16-16	1.10"	1.49"
FF1857T1010S	0.63"	1-14	1-14	1.31"	1.62"
FF1857T1212S	0.75"	1-3/16-12	1-3/16-12	1.47"	1.82"
FF1857T1616S	1.00"	1-7/16-12	1-7/16-12	1.64"	2.10"
FF1857T2020S	1.25"	1-11/16-12	1-11/16-12	1.76"	2.29"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
