FF1857T1010S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal x -10 Female O-Ring Face Seal | Steel
FF1857T1010S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal x -10 Female O-Ring Face Seal | Steel
FF1857T1010S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal x -10 Female O-Ring Face Seal | Steel
FF1857T1010S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal x -10 Female O-Ring Face Seal | Steel

FF1857T1010S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal x -10 Female O-Ring Face Seal | Steel

$60.75 - $60.75
$60.75
$60.75 - $60.75
$60.75

Aeroquip® by Danfoss

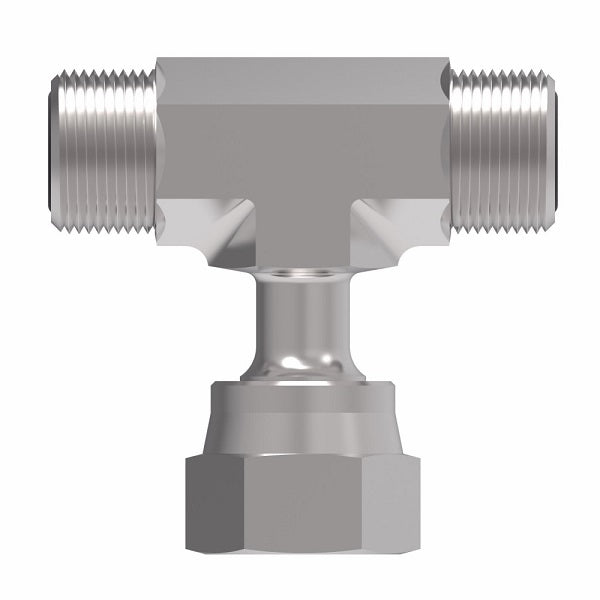

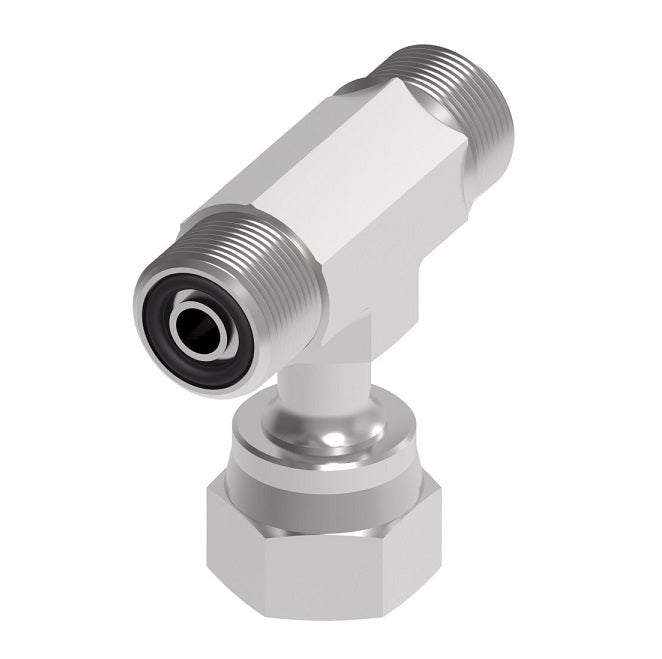

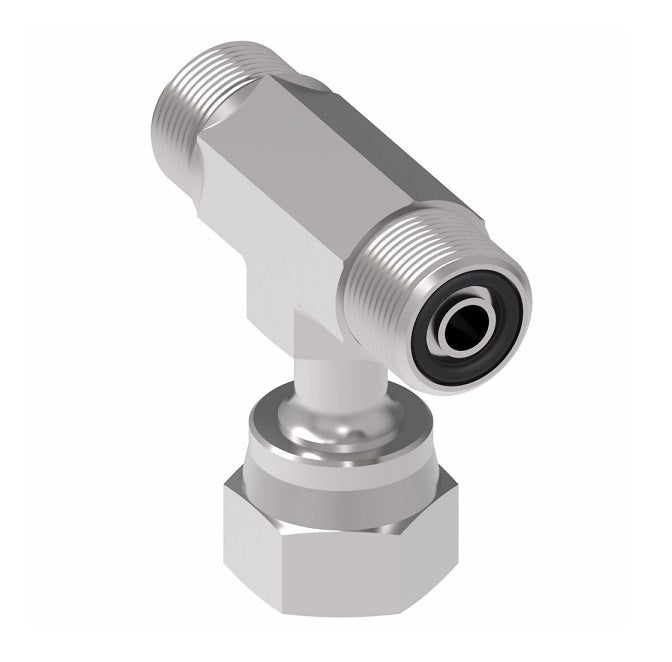

ORS Male/ORS Male/ORS Female Branch Tee Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Female O-Ring Face Seal

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1857T1010S Danfoss
Shape (Orientation): Tee
Ends Configuration: 5/8in Male O-Ring Face Seal, 5/8in Male O-Ring Face Seal, 5/8in Female O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520433
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF1857T0404S 0.25" 9/16-18 9/16-18 0.85" 1.04"
FF1857T0606S 0.38" 11/16-16 11/16-16 0.98" 1.15"
FF1857T0808S 0.50" 13/16-16 13/16-16 1.10" 1.49"
FF1857T1010S 0.63" 1-14 1-14 1.31" 1.62"
FF1857T1212S 0.75" 1-3/16-12 1-3/16-12 1.47" 1.82"
FF1857T1616S 1.00" 1-7/16-12 1-7/16-12 1.64" 2.10"
FF1857T2020S 1.25" 1-11/16-12 1-11/16-12 1.76" 2.29"
