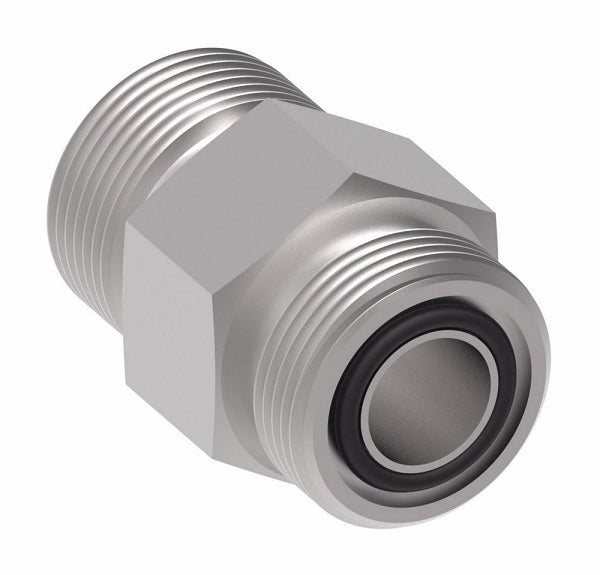

FF2000T0404S Aeroquip by Danfoss | ORS/ORS Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel
FF2000T0404S Aeroquip by Danfoss | ORS/ORS Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel
FF2000T0404S Aeroquip by Danfoss | ORS/ORS Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel
FF2000T0404S Aeroquip by Danfoss | ORS/ORS Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel

FF2000T0404S Aeroquip by Danfoss | ORS/ORS Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel

$3.24 - $3.24
$3.24
$3.24 - $3.24
$3.24

Aeroquip® by Danfoss
ORS/ORS Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2000T0404S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male O-Ring Face Seal, 1/4in Male O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520101
Construction:
  • Buna-N O-Rings are standard.
Steel Part Number Tube OD Thread T1 Thread T2 A Hex 1
FF2000T0404S 0.25" 9/16-18 9/16-18 1.08" 0.62"
FF2000T0604S 0.38" 11/16-16 9/16-18 1.17" 0.75"
FF2000T0606S 0.38" 11/16-16 11/16-16 1.22" 0.75"
FF2000T0806S 0.50" 13/16-16 11/16-16 1.33" 0.88"
FF2000T0808S 0.50" 13/16-16 13/16-16 1.39" 0.88"
FF2000T1008S 0.63" 1-14 13/16-16 1.57" 1.06"
FF2000T1010S 0.63" 1-14 1-14 1.68" 1.06"
FF2000T1208S 0.75" 1-3/16-12 13/16-16 1.69" 1.25"
FF2000T1210S 0.75" 1-3/16-12 1-14 1.80" 1.25"
FF2000T1212S 0.75" 1-3/16-12 1-3/16-12 1.86" 1.25"
FF2000T1612S 1.00" 1-7/16-12 1-3/16-12 1.92" 1.50"
FF2000T1616S 1.00" 1-7/16-12 1-7/16-12 1.94" 1.50"
FF2000T2020S 1.25" 1-11/16-12 1-11/16-12 2.02" 1.75"
FF2000T2424S 1.50" 2-12 2-12 2.09" 2.12"
