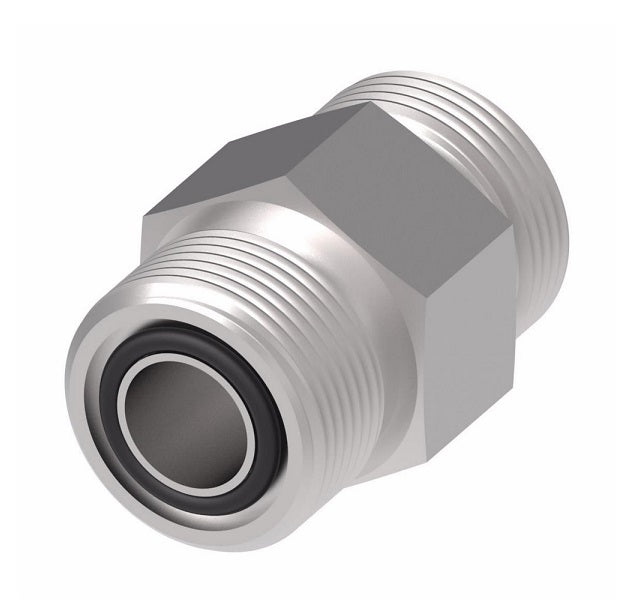

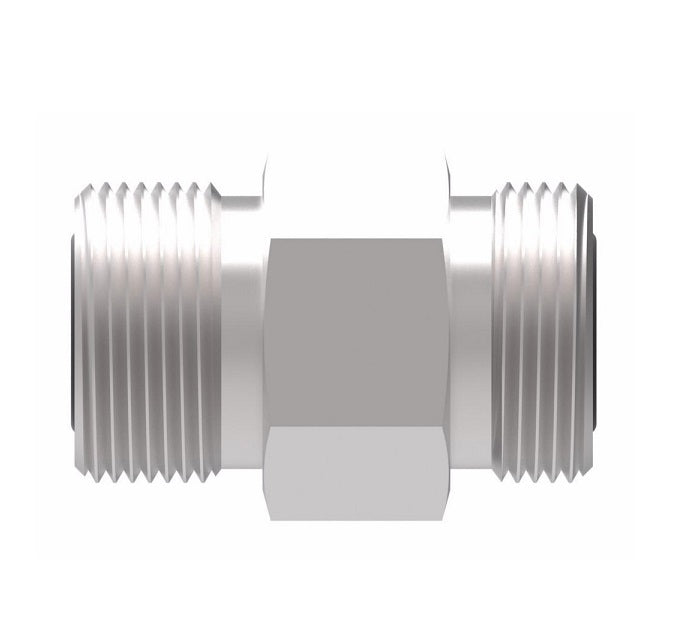

FF2000T1010S Aeroquip by Danfoss | ORS/ORS Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal | Steel

Name: FF2000T1010S Aeroquip by Danfoss | ORS/ORS Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF2000T1010S Danfoss
Price: 54.73 USD
Availability: InStock

$54.73 - $54.73

$54.73

$54.73 - $54.73

$54.73

Aeroquip® by Danfoss
ORS/ORS Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2000T1010S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male O-Ring Face Seal, 5/8in Male O-Ring Face Seal
Material(s):	Steel

Specifications:
Ref. SAE 520101
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	Hex 1
FF2000T0404S	0.25"	9/16-18	9/16-18	1.08"	0.62"
FF2000T0604S	0.38"	11/16-16	9/16-18	1.17"	0.75"
FF2000T0606S	0.38"	11/16-16	11/16-16	1.22"	0.75"
FF2000T0806S	0.50"	13/16-16	11/16-16	1.33"	0.88"
FF2000T0808S	0.50"	13/16-16	13/16-16	1.39"	0.88"
FF2000T1008S	0.63"	1-14	13/16-16	1.57"	1.06"
FF2000T1010S	0.63"	1-14	1-14	1.68"	1.06"
FF2000T1208S	0.75"	1-3/16-12	13/16-16	1.69"	1.25"
FF2000T1210S	0.75"	1-3/16-12	1-14	1.80"	1.25"
FF2000T1212S	0.75"	1-3/16-12	1-3/16-12	1.86"	1.25"
FF2000T1612S	1.00"	1-7/16-12	1-3/16-12	1.92"	1.50"
FF2000T1616S	1.00"	1-7/16-12	1-7/16-12	1.94"	1.50"
FF2000T2020S	1.25"	1-11/16-12	1-11/16-12	2.02"	1.75"
FF2000T2424S	1.50"	2-12	2-12	2.09"	2.12"
