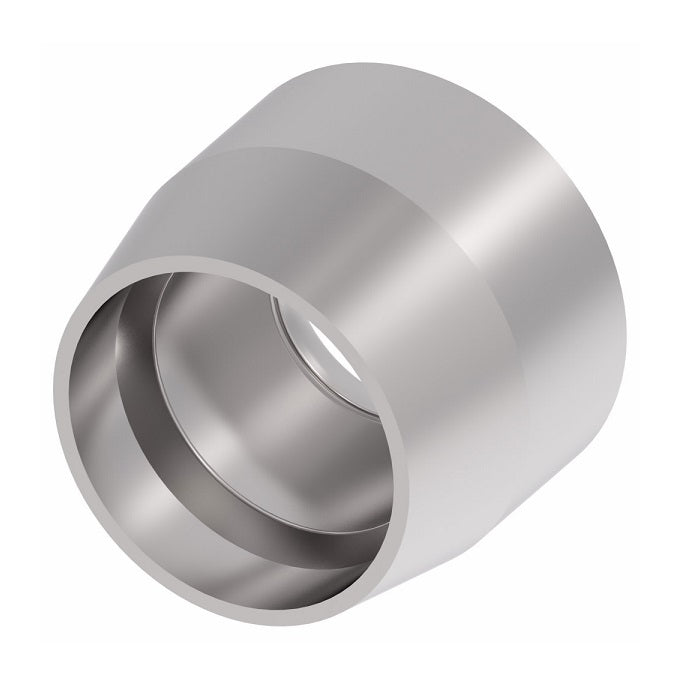

FF90103-08S Aeroquip by Danfoss | ORS-TF Sleeve Adapter | -08 O-Ring Face Seal | Steel
FF90103-08S Aeroquip by Danfoss | ORS-TF Sleeve Adapter | -08 O-Ring Face Seal | Steel
FF90103-08S Aeroquip by Danfoss | ORS-TF Sleeve Adapter | -08 O-Ring Face Seal | Steel

FF90103-08S Aeroquip by Danfoss | ORS-TF Sleeve Adapter | -08 O-Ring Face Seal | Steel

$10.42 - $10.42
$10.42
$10.42 - $10.42
$10.42

Aeroquip® by Danfoss
ORS-TF Sleeve Adapter - O-Ring Face Seal

(Formerly Eaton Aeroquip)

The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.
Specifications for Variant SKU: FF90103-08S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1/2in O-Ring Face Seal
Material(s): Steel
Construction:
  • Material: Steel
Part Number Tube OD A E F
FF90103-04S 0.25" 0.32" 0.17" 0.25"
FF90103-06S 0.38" 0.34" 0.26" 0.38"
FF90103-08S 0.50" 0.37" 0.38" 0.50"
FF90103-10S 0.63" 0.40" 0.48" 0.63"
FF90103-12S 0.75" 0.44" 0.61" 0.76"
FF90103-16S 1.00" 0.50" 0.81" 1.00"
FF90103-20S 1.25" 0.56" 1.05" 1.26"
FF90103-24S 1.50" 0.62" 1.26" 1.51"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
