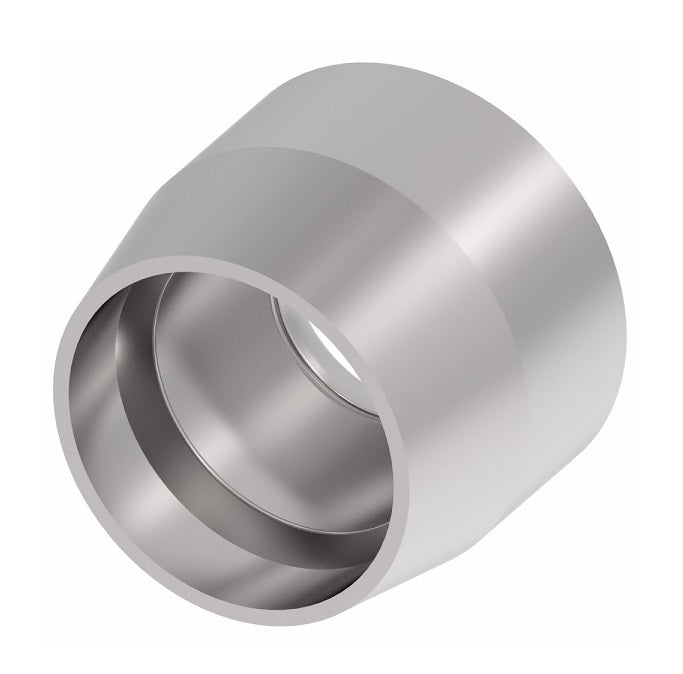

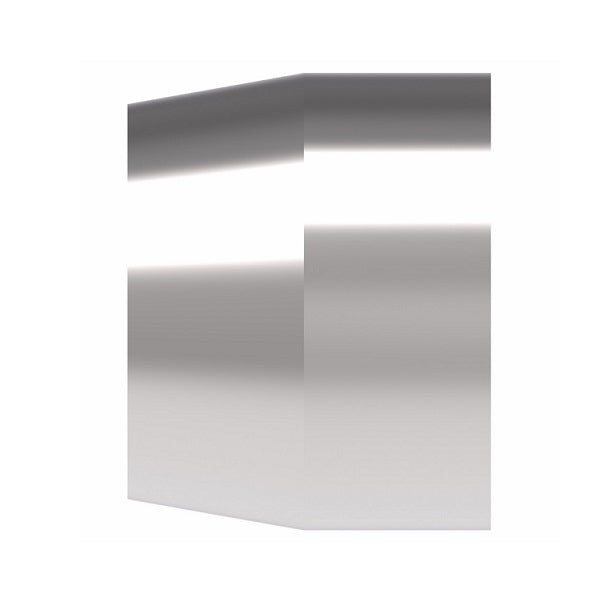

FF90103-16S Aeroquip by Danfoss | ORS-TF Sleeve Adapter | -16 O-Ring Face Seal | Steel

$17.98

Aeroquip® by Danfoss
ORS-TF Sleeve Adapter - O-Ring Face Seal

(Formerly Eaton Aeroquip)

The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FF90103-16S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1in O-Ring Face Seal
Material(s): Steel
Construction:
  • Material: Steel
Part Number Tube OD A E F
FF90103-04S 0.25" 0.32" 0.17" 0.25"
FF90103-06S 0.38" 0.34" 0.26" 0.38"
FF90103-08S 0.50" 0.37" 0.38" 0.50"
FF90103-10S 0.63" 0.40" 0.48" 0.63"
FF90103-12S 0.75" 0.44" 0.61" 0.76"
FF90103-16S 1.00" 0.50" 0.81" 1.00"
FF90103-20S 1.25" 0.56" 1.05" 1.26"
FF90103-24S 1.50" 0.62" 1.26" 1.51"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
