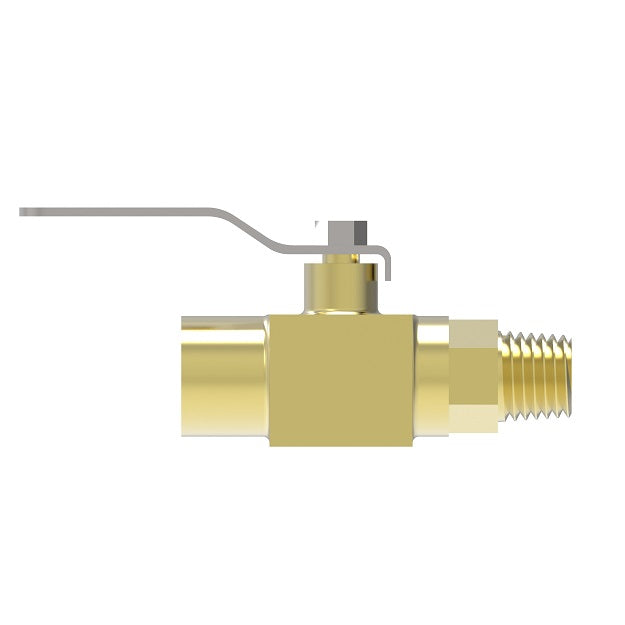

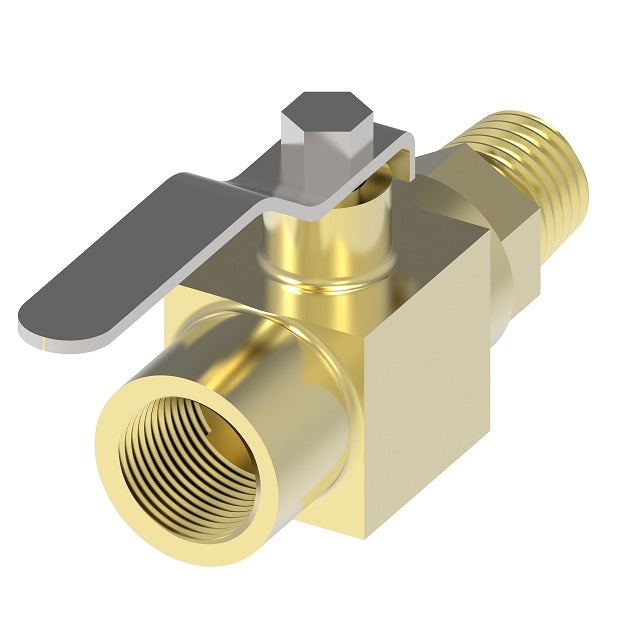

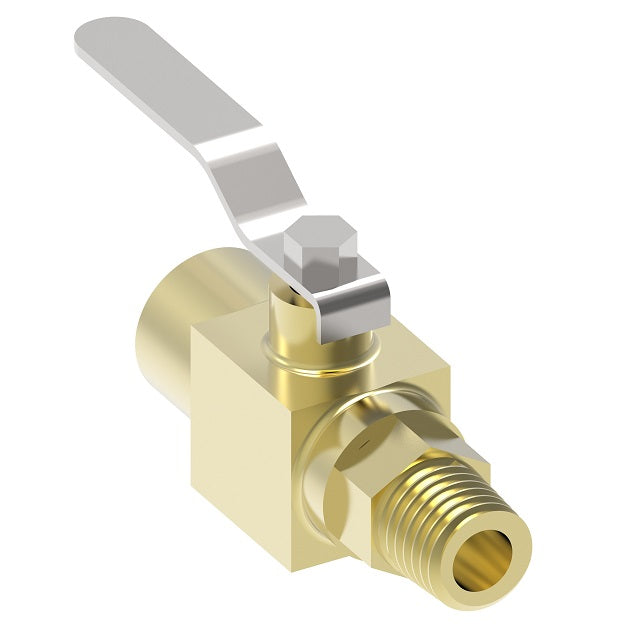

FF90588-32 by Danfoss | Ball Valve | Forged Body | 2" Male NPTF x 2" Female NPTF | Brass
FF90588-32 by Danfoss | Ball Valve | Forged Body | 2" Male NPTF x 2" Female NPTF | Brass
FF90588-32 by Danfoss | Ball Valve | Forged Body | 2" Male NPTF x 2" Female NPTF | Brass
FF90588-32 by Danfoss | Ball Valve | Forged Body | 2" Male NPTF x 2" Female NPTF | Brass

FF90588-32 by Danfoss | Ball Valve | Forged Body | 2" Male NPTF x 2" Female NPTF | Brass

$281.40 - $281.40
$281.40
$281.40 - $281.40
$281.40

Aeroquip® by Danfoss
Ball Valve - Forged Body Brass Ball Valve
Specifications for Variant SKU: FF90588-32 Danfoss
Shape (Orientation): Straight
Ends Configuration: 2in Male NPTF, 2in Female NPTF
Material(s): Brass
For use with:
  • Water, oils and gases.
Applications:
  • Vacuum service
  • Industrial service
  • Machine/engine coolant
  • Water service
  • Fuel tank - gasoline/diesel
Features/Benefits:
  • Blowout proof stem.
  • Double o-ring stem seal.
  • Tamper proof design.
  • Floating ball design.
  • 1/4 turn - full on/off.
  • Vacuum rating: Full.
Material:
  • Forged brass body.
  • Chrome plated brass ball.
  • Standard steel handle.
Pressure:
  • Working pressure: 600 psig WOG @ 70ºF.
Temperature Range:
  • Temperature range: -40ºF to +300ºF
Orifice Diameters:
  • 1/4" = .44"
  • 3/8" = .50"
  • 1/2" = .50"
  • 3/4" = .69"
  • 1" = .88"
  • 1-1/4" = 1.18"
  • 1-1/2" = 1.57"
  • 2" = 1.89"
Note:
  • Not steam rated.

Brass
Part Number		 Connections Size X Y Z D
FF90588-04 M x F NPT 1/4" 3.70" 2.38" 2.75" 1.13"
FF90588-06 M x F NPT 3/8" 3.70" 2.38" 2.75" 1.13"
FF90588-08 M x F NPT 1/2" 3.70" 2.38" 2.75" 1.13"
FF90588-16 M x F NPT 1" 4.50" 3.00" 4.00" 1.71"
FF90588-20 M x F NPT 1-1/4" 6.22" 3.01" 4.05" 1.83"
FF90588-24 M x F NPT 1-1/2" 6.22" 3.24" 4.35" 2.01"
FF90588-32 M x F NPT 2" 6.22" 3.52" 5.13" 2.38"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
