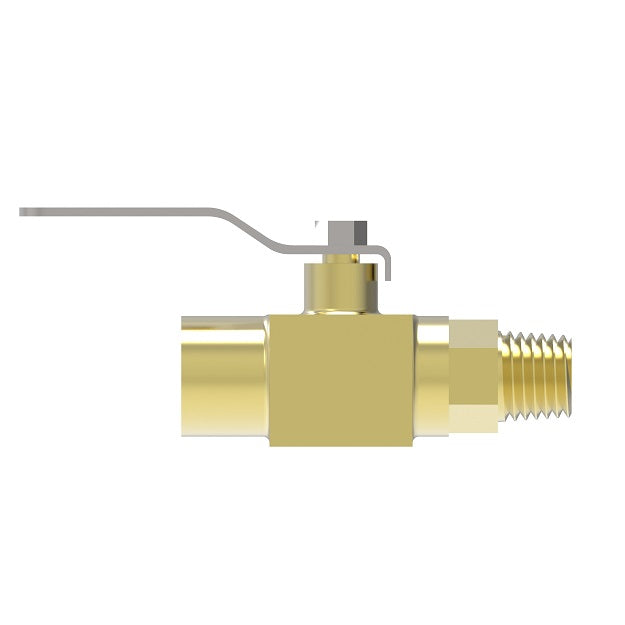

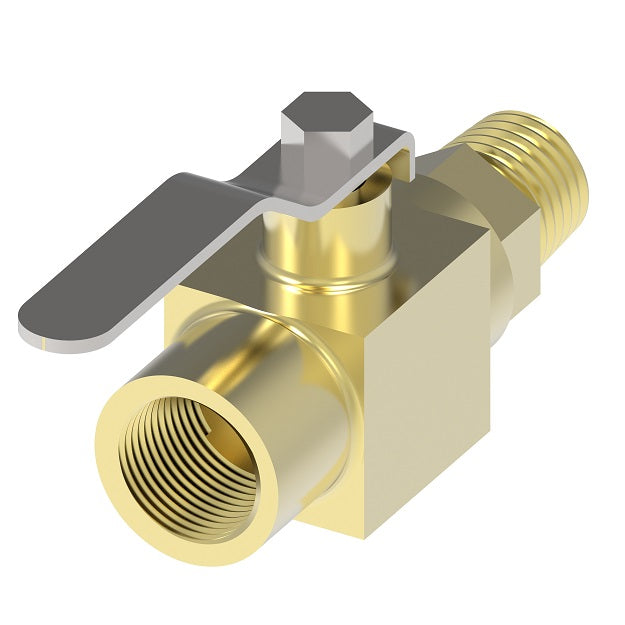

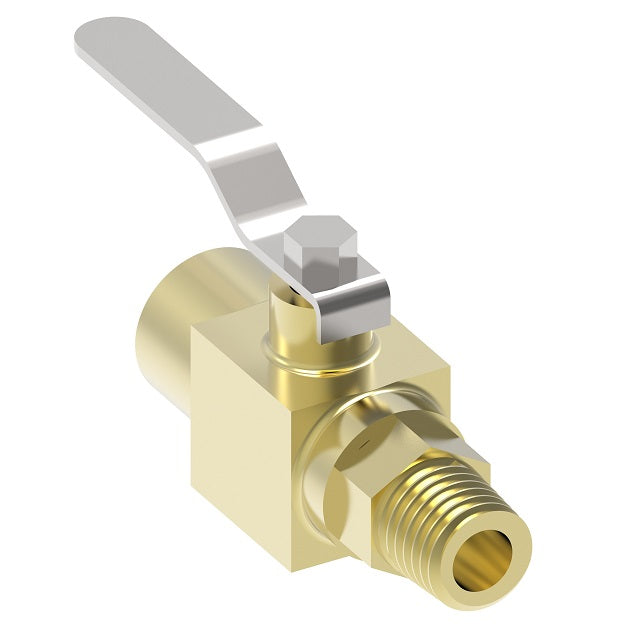

FF90588-24 by Danfoss | Ball Valve | Forged Body | 1-1/2" Male NPTF x 1-1/2" Female NPTF | Brass
FF90588-24 by Danfoss | Ball Valve | Forged Body | 1-1/2" Male NPTF x 1-1/2" Female NPTF | Brass
FF90588-24 by Danfoss | Ball Valve | Forged Body | 1-1/2" Male NPTF x 1-1/2" Female NPTF | Brass
FF90588-24 by Danfoss | Ball Valve | Forged Body | 1-1/2" Male NPTF x 1-1/2" Female NPTF | Brass

FF90588-24 by Danfoss | Ball Valve | Forged Body | 1-1/2" Male NPTF x 1-1/2" Female NPTF | Brass

$277.12 - $277.12
$277.12
$277.12 - $277.12
$277.12

Aeroquip® by Danfoss
Ball Valve - Forged Body Brass Ball Valve
Specifications for Variant SKU: FF90588-24 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 1-1/2in Female NPTF
Material(s): Brass
For use with:
  • Water, oils and gases.
Applications:
  • Vacuum service
  • Industrial service
  • Machine/engine coolant
  • Water service
  • Fuel tank - gasoline/diesel
Features/Benefits:
  • Blowout proof stem.
  • Double o-ring stem seal.
  • Tamper proof design.
  • Floating ball design.
  • 1/4 turn - full on/off.
  • Vacuum rating: Full.
Material:
  • Forged brass body.
  • Chrome plated brass ball.
  • Standard steel handle.
Pressure:
  • Working pressure: 600 psig WOG @ 70ºF.
Temperature Range:
  • Temperature range: -40ºF to +300ºF
Orifice Diameters:
  • 1/4" = .44"
  • 3/8" = .50"
  • 1/2" = .50"
  • 3/4" = .69"
  • 1" = .88"
  • 1-1/4" = 1.18"
  • 1-1/2" = 1.57"
  • 2" = 1.89"
Note:
  • Not steam rated.

Brass
Part Number		 Connections Size X Y Z D
FF90588-04 M x F NPT 1/4" 3.70" 2.38" 2.75" 1.13"
FF90588-06 M x F NPT 3/8" 3.70" 2.38" 2.75" 1.13"
FF90588-08 M x F NPT 1/2" 3.70" 2.38" 2.75" 1.13"
FF90588-16 M x F NPT 1" 4.50" 3.00" 4.00" 1.71"
FF90588-20 M x F NPT 1-1/4" 6.22" 3.01" 4.05" 1.83"
FF90588-24 M x F NPT 1-1/2" 6.22" 3.24" 4.35" 2.01"
FF90588-32 M x F NPT 2" 6.22" 3.52" 5.13" 2.38"
