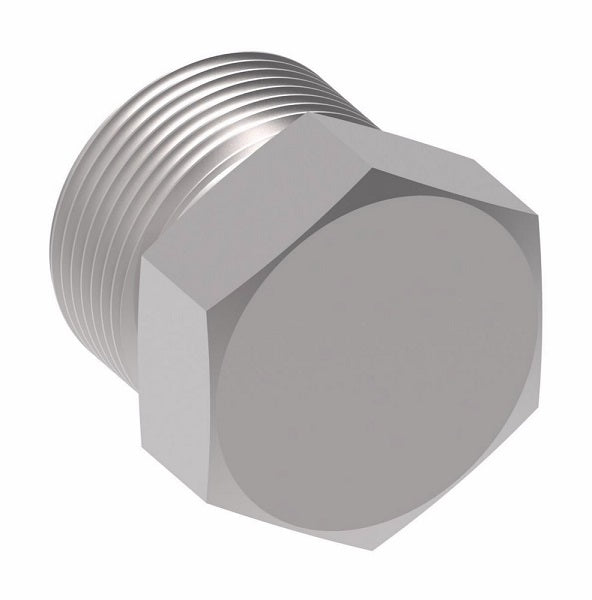

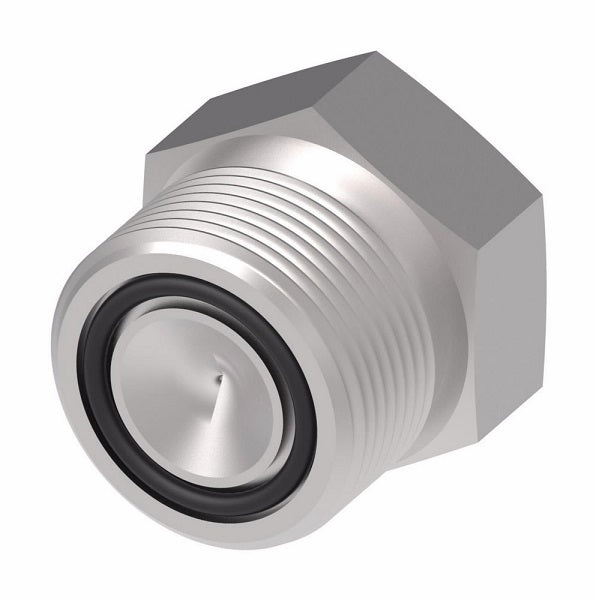

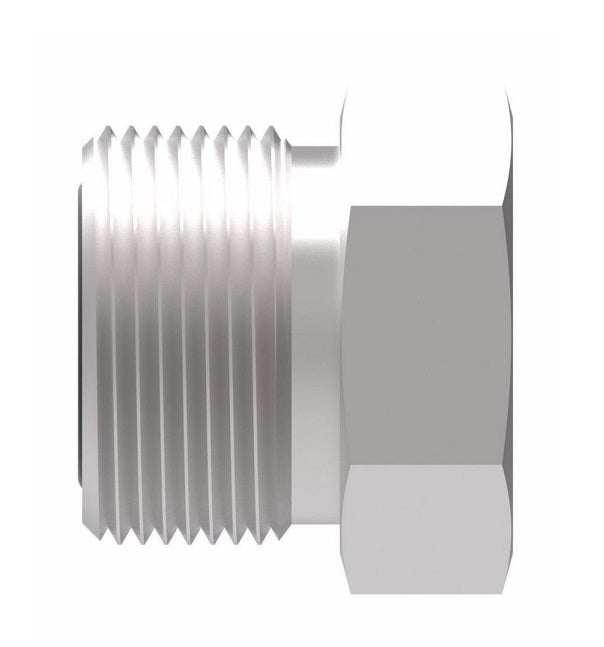

FF9767T08-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -08 Size | Steel
FF9767T08-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -08 Size | Steel
FF9767T08-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -08 Size | Steel
FF9767T08-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -08 Size | Steel

FF9767T08-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -08 Size | Steel

$3.43 - $3.43
$3.43
$3.43 - $3.43
$3.43

Aeroquip® by Danfoss
O-Ring Face Seal (ORS) Plug

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF9767T08-S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1/2in Male O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520109
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 A Hex 1
FF9767T04-S 0.25" 9/16-18 0.66" 0.62"
FF9767T06-S 0.38" 11/16-16 0.75" 0.75"
FF9767T08-S 0.50" 13/16-16 0.87" 0.88"
FF9767T10-S 0.63" 1-14 1.02" 1.06"
FF9767T12-S 0.75" 1-3/16-12 1.08" 1.25"
FF9767T16-S 1.00" 1-7/16-12 1.10" 1.50"
FF9767T20-S 1.25" 1-11/16-12 1.10" 1.75"
FF9767T24-S 1.50" 2-12 1.10" 2.12"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
