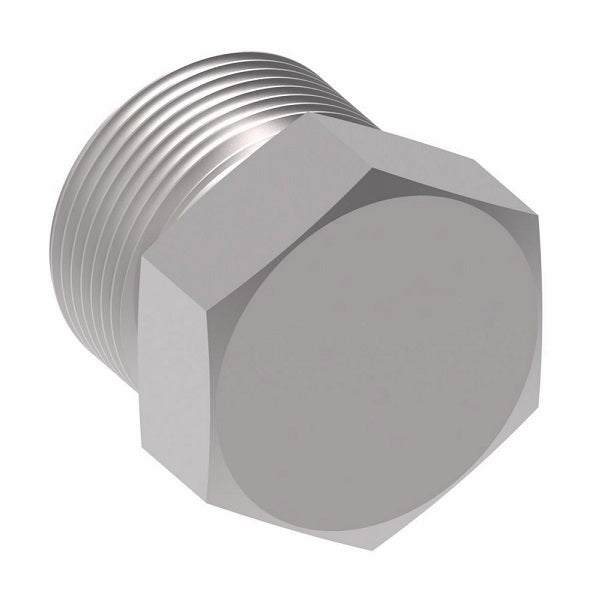

FF9767T12-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -12 Size | Steel
FF9767T12-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -12 Size | Steel
FF9767T12-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -12 Size | Steel
FF9767T12-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -12 Size | Steel

FF9767T12-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -12 Size | Steel

$5.43 - $5.43
$5.43
$5.43 - $5.43
$5.43

Aeroquip® by Danfoss
O-Ring Face Seal (ORS) Plug

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF9767T12-S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 3/4in Male O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520109
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 A Hex 1
FF9767T04-S 0.25" 9/16-18 0.66" 0.62"
FF9767T06-S 0.38" 11/16-16 0.75" 0.75"
FF9767T08-S 0.50" 13/16-16 0.87" 0.88"
FF9767T10-S 0.63" 1-14 1.02" 1.06"
FF9767T12-S 0.75" 1-3/16-12 1.08" 1.25"
FF9767T16-S 1.00" 1-7/16-12 1.10" 1.50"
FF9767T20-S 1.25" 1-11/16-12 1.10" 1.75"
FF9767T24-S 1.50" 2-12 1.10" 2.12"
