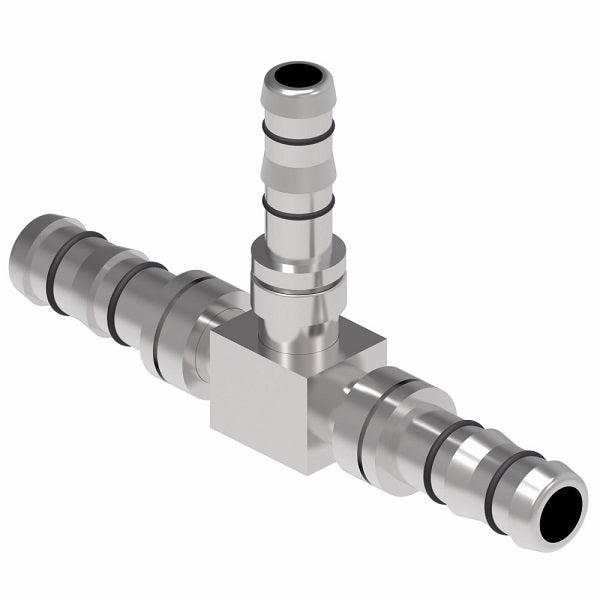

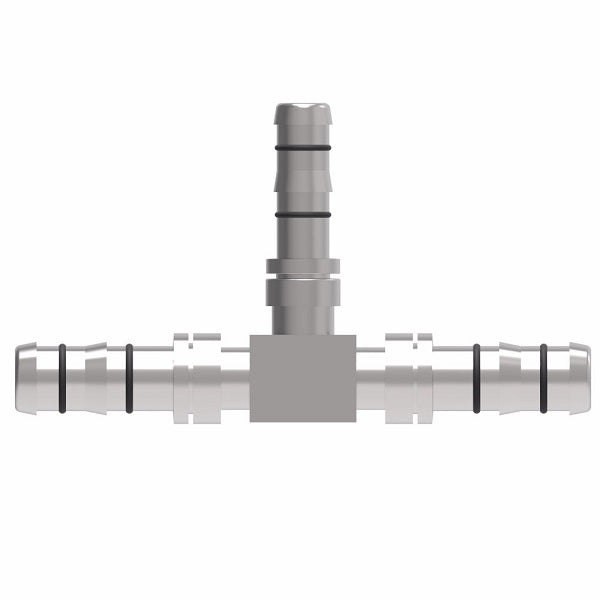

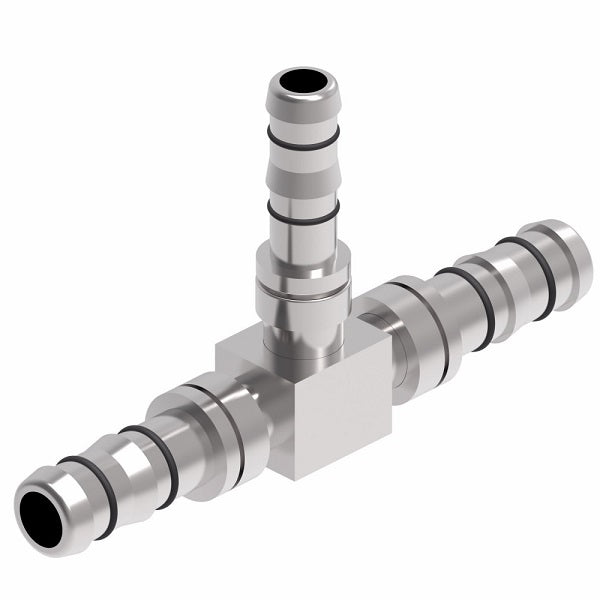

FJ3066-0606S E-Z Clip System by Danfoss | "T" Splicer | 3 Hose Connector | A/C Refrigeration Fitting | -06 Hose Barb x -06 Hose Barb x -06 Hose Barb | Steel

FJ3066-0606S E-Z Clip System by Danfoss | "T" Splicer | 3 Hose Connector | A/C Refrigeration Fitting | -06 Hose Barb x -06 Hose Barb x -06 Hose Barb | Steel

Name: FJ3066-0606S E-Z Clip System by Danfoss | "T" Splicer | 3 Hose Connector | A/C Refrigeration Fitting | -06 Hose Barb x -06 Hose Barb x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3066-0606S Danfoss
Price: 96.31 USD
Availability: InStock

$96.31 - $96.31

$96.31

$96.31 - $96.31

$96.31

Danfoss A/C & Refrigeration
E-Z Clip System - "T" Splicer (3 Hose Connector) - Tee

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: FJ3066-0606S Danfoss
Brand:	E-Z Clip
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 3/8in Hose Barb, 3/8in Hose Barb, Some Ends Match
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	Ref.	Clip & Cage Kit (1 Kit Required for each End)
FJ3066-0606S	-	-06	5.48"	2.40"	-	FF14171
FJ3066-060808S	-	-06 x -08 x -08	5.48"	2.40"	-	-06: FF14171 -08: FF14172
FJ3066-0808S	-	-08	5.48"	2.40"	-	FF14172
FJ3066-1010S	-	-10	5.62"	2.52"	-	FF14173
FJ3066-101212S	-	-10 x -12 x -12	5.67"	2.52"	-	-10: FF14173 -12: FF14174
FJ3066-1212S	-	-12	5.67"	2.52"	-	FF14174
