FJX-07-08-SST by Kurt Hydraulics | Jump Size | Female JIC | Swivel | PTFE Coupling | for 7/16" Hose ID

FJX-07-08-SST by Kurt Hydraulics | Jump Size | Female JIC | Swivel | PTFE Coupling | for 7/16" Hose ID

Save $1.08 Save $1.08
$9.72
$9.72 - $9.72
$9.72
$8.64
$8.64 - $8.64
$8.64

by Kurt Hydraulics
FJX-SST - 37 deg. JIC Female Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FJX-07-08-SST Kurt
Series: FJX Series
Shape (Orientation): Straight
Ends Configuration: 7/16in Hose Barb, 1/2in Female JIC
Special Properties: Swivel, Jump Size

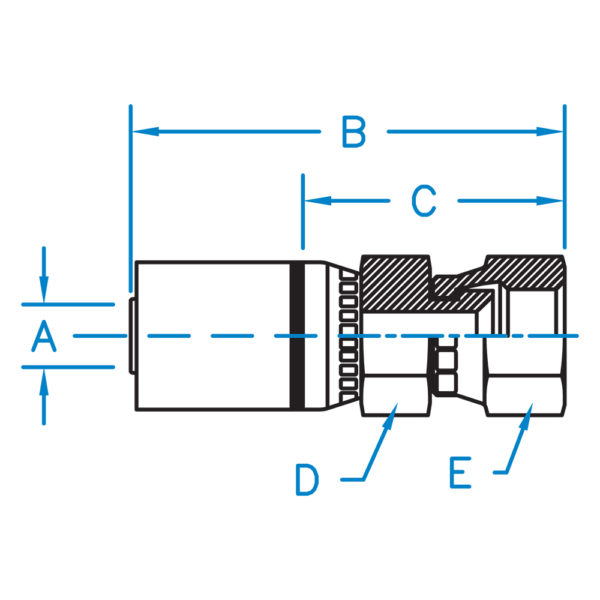

Part Number A B C D E Hose ID
(In)		 Thread
FJX-03-04-SST 0.187 2.240 1.437 5/8 5/8 3/16" 7/16-20
FJX-03-05-SST 0.187 2.240 1.437 5/8 3/4 3/16" 1/2-20
FJX-04-04-SST 0.250 2.531 1.437 9/16 5/8 1/4" 7/16-20
FJX-04-05-SST 0.250 2.531 1.437 5/8 3/4 1/4" 1/2-20
FJX-04-06-SST 0.250 2.531 1.437 9/16 3/4 1/4" 9/16-18
FJX-05-04-SST 0.312 2.555 1.245 5/8 9/16 5/16" 7/16-20
FJX-05-05-SST N/A N/A N/A N/A N/A N/A N/A
FJX-05-06-SST 0.312 2.507 1.197 5/8 11/16 5/16" 9/16-18
FJX-06-06-SST 0.375 2.813 1.375 3/4 3/4 3/8" 9/16-18
FJX-06-08-SST N/A N/A N/A N/A N/A N/A N/A
FJX-07-06-SST 0.437 2.809 1.339 3/4 11/16 7/16" 9/16-18
FJX-07-08-SST 0.437 2.820 1.350 3/4 7/8 7/16" 3/4-16
FJX-08-06-SST N/A N/A N/A N/A N/A N/A N/A
FJX-08-08-SST 0.500 3.156 1.500 7/8 15/16 1/2" 3/4-16
FJX-08-10-SST 0.500 3.156 1.500 7/8 1-1/16 1/2" 7/8-14
FJX-10-08-SST 0.625 3.240 1.500 7/8 15/16 5/8" 3/4-16
FJX-10-10-SST 0.625 3.350 1.500 7/8 1-1/16 5/8" 7/8-14
FJX-10-12-SST 0.625 3.450 1.625 1-1/8 1-1/4 5/8" 1-1/16-12
FJX-12-12-SST 0.750 3.437 1.625 1-1/8 1-1/4 3/4" 1-1/16-12
FJX-12-14-SST 0.750 3.437 1.625 1-1/8 1-1/4 3/4" 1-3/16-12
FJX-12-16-SST 0.750 3.500 1.687 1-3/8 1-1/2 3/4" 1-5/16-12
FJX-16-12-SST 1.000 3.620 1.625 1-1/8 1-1/4 1.000" 1-1/16-16
FJX-16-16-SST 1.000 4.062 1.687 1-3/8 1-1/2 1.000" 1-5/16-12

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
