FJX-10-12-SST by Kurt Hydraulics | Jump Size | Female JIC | Swivel | PTFE Coupling | for 5/8" Hose ID

FJX-10-12-SST by Kurt Hydraulics | Jump Size | Female JIC | Swivel | PTFE Coupling | for 5/8" Hose ID

Save $10.91 Save $10.91
$27.27
$27.27 - $27.27
$27.27
$16.36
$16.36 - $16.36
$16.36

by Kurt Hydraulics
FJX-SST - 37 deg. JIC Female Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FJX-10-12-SST Kurt
Series: SST Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 3/4in Female JIC
Special Properties: Swivel, Jump Size

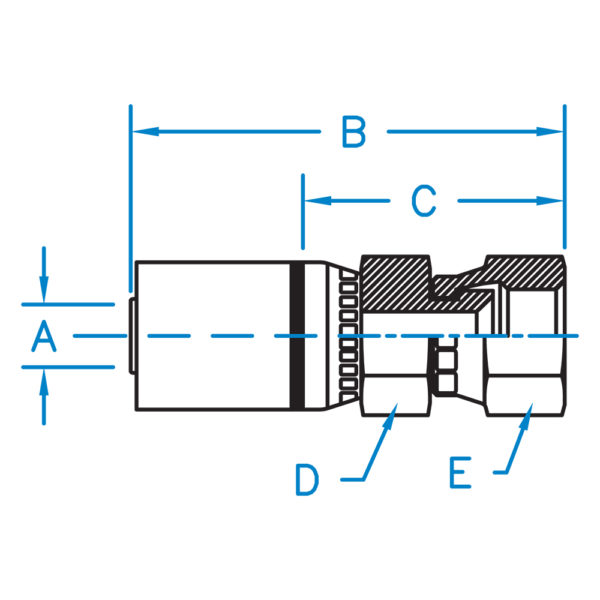

Part Number A B C D E Hose ID
(In)		 Thread
FJX-03-04-SST 0.187 2.240 1.437 5/8 5/8 3/16" 7/16-20
FJX-03-05-SST 0.187 2.240 1.437 5/8 3/4 3/16" 1/2-20
FJX-04-04-SST 0.250 2.531 1.437 9/16 5/8 1/4" 7/16-20
FJX-04-05-SST 0.250 2.531 1.437 5/8 3/4 1/4" 1/2-20
FJX-04-06-SST 0.250 2.531 1.437 9/16 3/4 1/4" 9/16-18
FJX-05-04-SST 0.312 2.555 1.245 5/8 9/16 5/16" 7/16-20
FJX-05-05-SST N/A N/A N/A N/A N/A N/A N/A
FJX-05-06-SST 0.312 2.507 1.197 5/8 11/16 5/16" 9/16-18
FJX-06-06-SST 0.375 2.813 1.375 3/4 3/4 3/8" 9/16-18
FJX-06-08-SST N/A N/A N/A N/A N/A N/A N/A
FJX-07-06-SST 0.437 2.809 1.339 3/4 11/16 7/16" 9/16-18
FJX-07-08-SST 0.437 2.820 1.350 3/4 7/8 7/16" 3/4-16
FJX-08-06-SST N/A N/A N/A N/A N/A N/A N/A
FJX-08-08-SST 0.500 3.156 1.500 7/8 15/16 1/2" 3/4-16
FJX-08-10-SST 0.500 3.156 1.500 7/8 1-1/16 1/2" 7/8-14
FJX-10-08-SST 0.625 3.240 1.500 7/8 15/16 5/8" 3/4-16
FJX-10-10-SST 0.625 3.350 1.500 7/8 1-1/16 5/8" 7/8-14
FJX-10-12-SST 0.625 3.450 1.625 1-1/8 1-1/4 5/8" 1-1/16-12
FJX-12-12-SST 0.750 3.437 1.625 1-1/8 1-1/4 3/4" 1-1/16-12
FJX-12-14-SST 0.750 3.437 1.625 1-1/8 1-1/4 3/4" 1-3/16-12
FJX-12-16-SST 0.750 3.500 1.687 1-3/8 1-1/2 3/4" 1-5/16-12
FJX-16-12-SST 1.000 3.620 1.625 1-1/8 1-1/4 1.000" 1-1/16-16
FJX-16-16-SST 1.000 4.062 1.687 1-3/8 1-1/2 1.000" 1-5/16-12
